Long-distance lighting line scan light source
-
Description
The long-distance lighting line scan light source and the long-distance lighting line scan light source adopt a unique design. -
Requirement
The light source adopts a special mechanical structure design, which has high heat dissipation efficiency -
Technical difficulty

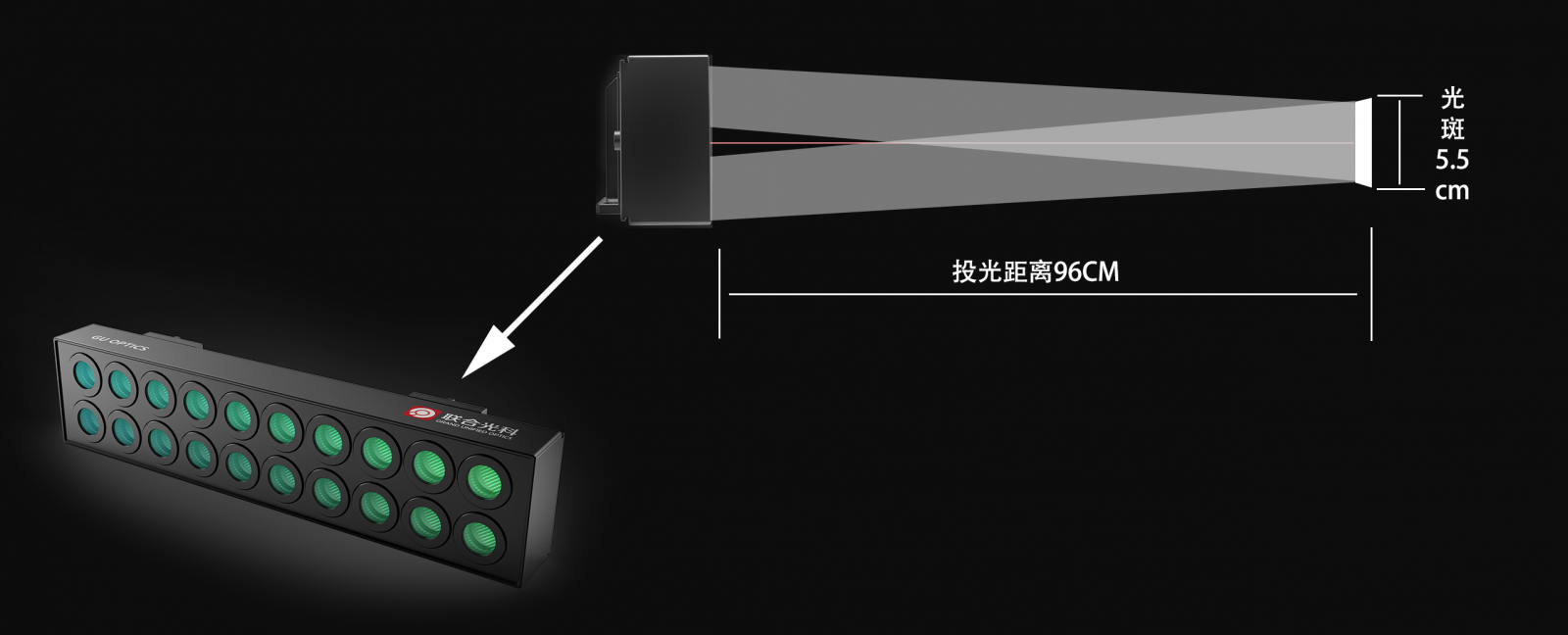

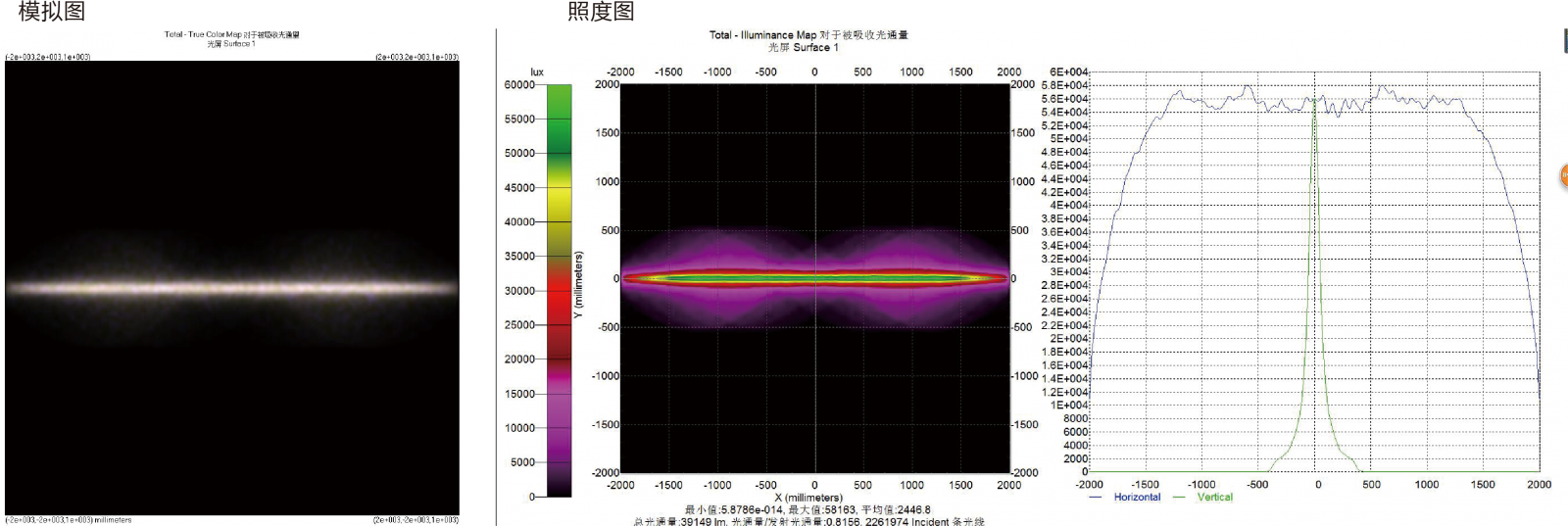

It can illuminate a 3800mm long and 60mm wide spot at a distance of one meter from the road, and the illuminance reaches 55000LUX. The uniformity reaches more than 90%.
A light source that can replace line laser
The long-distance lighting line scan light source adopts a unique design. It is an LED light source specially used to fill light for line scan cameras, and is suitable for railway, highway and other test occasions. The light source adopts a special mechanical structure design, which has high heat dissipation efficiency. It can illuminate a 3800mm long and 60mm wide spot from one meter away from the road, and the illuminance can reach 55000LUX. The uniformity can reach more than 90%. The service life of the product is 30,000 hours. And according to the needs of users, selection and customization to meet the needs of lighting.
