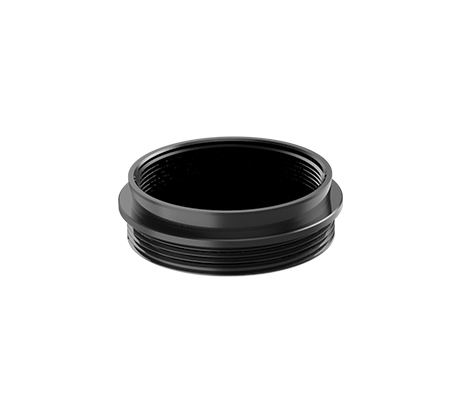

Fast Conversion Adapter
In the actual application process, users will encounter a situation where one (or several) optical components (or components) need to be replaced frequently (for example, when measuring the focal length of the component, the measurement objective lens is usually replaced according to the focal length of the measured component) . The Quick Change Gripper gives you a quick and easy way.
Fast Conversion Adapter
Pro No.
Parameter
D
H
Port 1 Screw Threads
Port 2 Screw Threads
Delivery time
Compare
Price
Purchase
Ø63mm
8mm
M52x0.75- External thread
Snap ring dovetail - Internal thread
Consult
Consult
Ø56mm
8mm
M52x0.75- External thread
Dovetail- External thread
Consult
Consult
Ø56mm
8mm
M52x0.75- Internal thread
Dovetail- External thread
Consult
Consult
Ø53mm
8mm
M48x0.75- External thread
Snap ring dovetail - Internal thread
Consult
Consult
Ø51.5mm
8mm
M48x0.75- External thread
Dovetail- External thread
Consult
Consult
Ø51.5mm
8mm
M48x0.75- Internal thread
Dovetail- External thread
Consult
Consult
Ø53mm
8mm
M42x0.75- External thread
Snap ring dovetail - Internal thread
Consult
Consult
Ø51.5mm
8mm
M42x0.75- External thread
Dovetail- External thread
Consult
Consult
Ø51.5mm
8mm
M42x0.75- Internal thread
Dovetail- External thread
Consult
Consult
Ø46mm
8mm
M35x0.75- External thread
Snap ring dovetail - Internal thread
Consult
Consult
Ø46mm
8mm
M35x0.75- External thread
Dovetail- External thread
Consult
Consult
Ø46mm
8mm
M35x0.75- Internal thread
Dovetail- External thread
Consult
Consult
Ø40mm
8mm
M28.5x0.6- External thread
Snap ring dovetail - Internal thread
Consult
Consult
Ø40mm
8mm
M28.5x0.6- External thread
Dovetail- External thread
Consult
Consult
Ø40mm
8mm
M28.5x0.6- Internal thread
Dovetail- External thread
Consult
Consult
Ø36mm
8mm
M23.2x0.75- External thread
Snap ring dovetail - Internal thread
Consult
Consult
Ø36mm
8mm
M23.2x0.75- External thread
Dovetail- External thread
Consult
Consult
Ø36mm
8mm
M23.2x0.75- Internal thread
Dovetail- External thread
Consult
Consult
Ø27mm
8mm
M15x0.75- External thread
Snap ring dovetail - Internal thread
Consult
Consult
Ø27mm
8mm
M15x0.75- External thread
Dovetail- External thread
Consult
Consult
