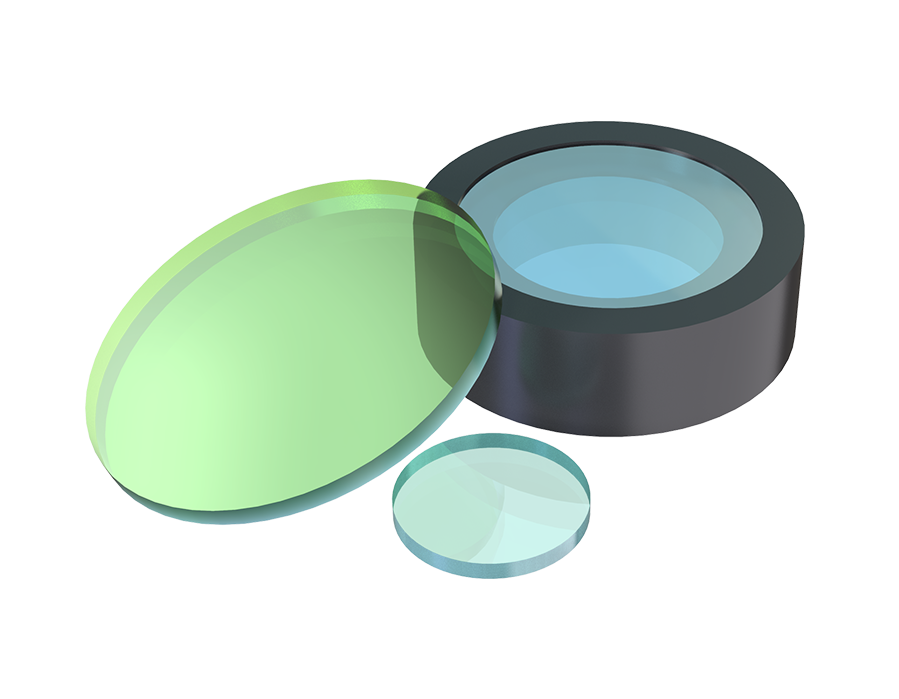

λ/2 Air-Gap Zero-Order Waveplates
GU Optics offers standard λ/2 Air-Gap Zero-Order Waveplates of size 12.7mm and 25.4mm, which are specially designed for wavelengths of 355nm, 532nm, 632.8nm, 780nm, 850nm, 1064nm, 1550nm
λ/2 Air-Gap Zero-Order Waveplates
Material Quartz,Schlieren Grade
Angle of Incidence
Surface Quality 10-5
Parallelism <1 arcsec
Retardance ±λ/300
Wavefront Error ≤λ/10@632.8nm over the full aperture
Thickness Tolerance +0/-0.25mm

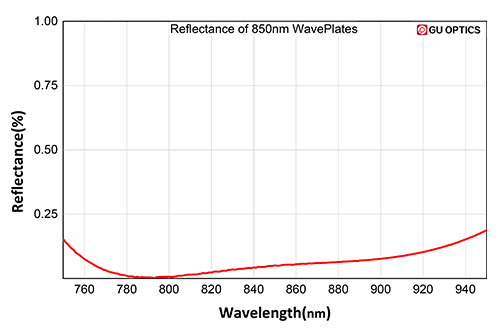

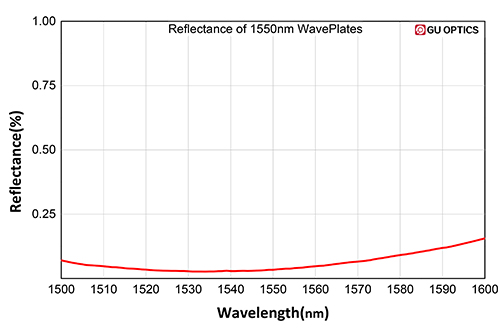

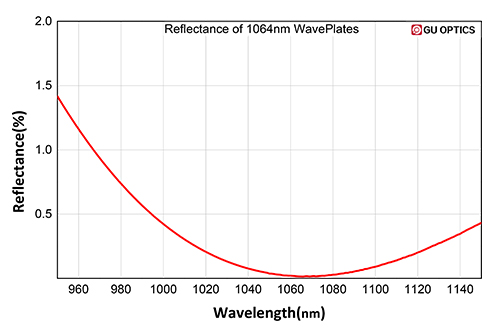

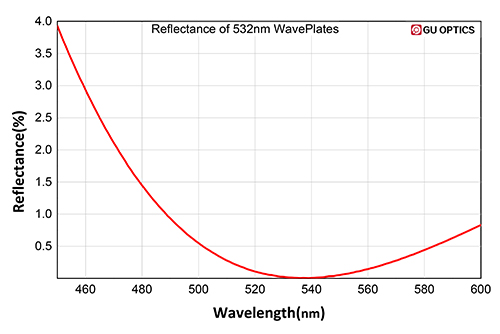

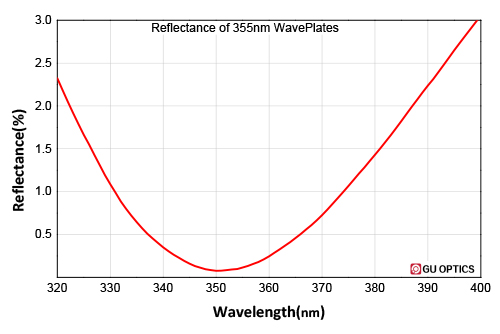

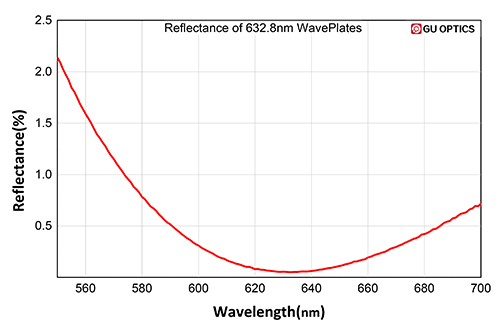

Coating AR Coating Rmax<0.25%@Design Wavelength
Damage Threshold 1.95J/cm²with10ns,10Hz

Dia

Retardance

Angle of Incidence

Pro No.
Parameter
Dia
DWL
Retardance
Angle of Incidence
Delivery time
Compare
Price
Purchase
25.4mm
355nm
λ/2
In stock
$369.78
25.4mm
780nm
λ/2
In stock
$369.78
12.7mm
632.8nm
λ/2
In stock
$309.71
12.7mm
1550nm
λ/2
In stock
$295.92
12.7mm
532nm
λ/2
In stock
$295.92
12.7mm
850nm
λ/2
In stock
$295.92
12.7mm
1064nm
λ/2
In stock
$295.92
25.4mm
532nm
λ/2
Consult
$369.78
25.4mm
632.8nm
λ/2
In stock
$369.78
25.4mm
850nm
λ/2
In stock
$369.78
25.4mm
1550nm
λ/2
In stock
$369.78
25.4mm
1064nm
λ/2
Consult
$369.78
