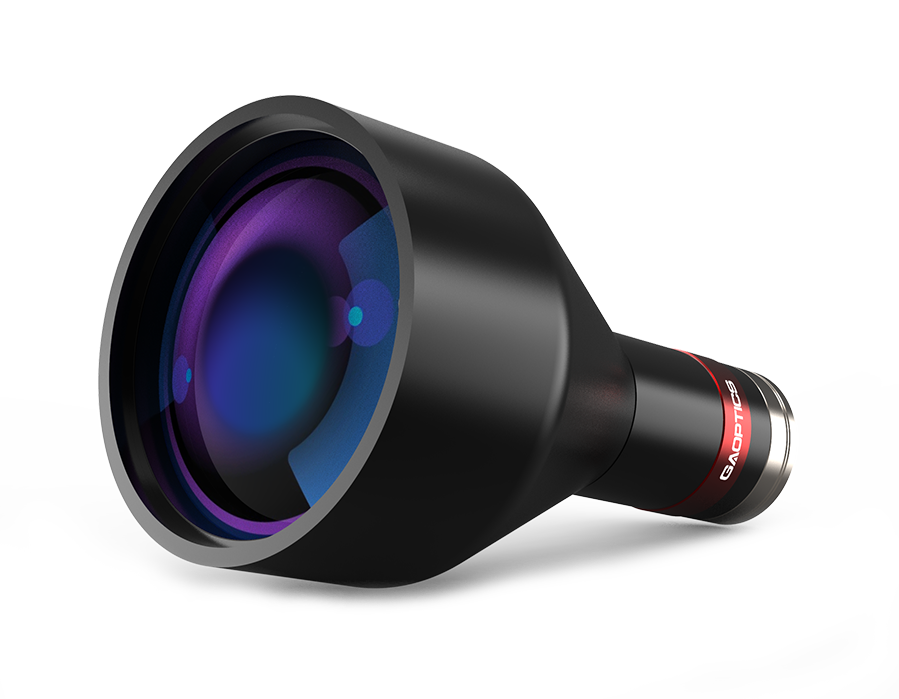

GA Large FOV Double Telecentric Lenses
GA Large FOV double telecentric lens’s FOV reach up to 250mm, image sensor includes 1/1.8", 2/3", 1", 4/3".  It provides rich choices for large-scale industrial measurement.

Product characteristics
1. FOV covers 65mm, 100mm, 150mm and 250mm;
2. Image sensor covers 1/1.8", 2/3", 1", and 4/3";
3. Double telecentric design, suitable for high precision measurement

GA Large FOV Double Telecentric Lenses
Pro No.
Parameter
FOV
Magnification
Max. sensor size
Illumination Port
Delivery time
Compare
Price
Purchase
65mm
0.111X
1/2.5"
-
Consult
$1328.27
100mm
0.072X
1/2.5"
-
Consult
$1707.78
248.27mm
0.029X
1/2.5"
-
Consult
$6072.11
65mm
0.138X
1/1.8"
-
Consult
$1328.27
100mm
0.09X
1/1.8"
-
Consult
$1707.78
250mm
0.036X
1/1.8"
-
Consult
$6072.11
62.5mm
0.176X
2/3
-
Consult
$1328.27
96.49mm
0.114X
2/3
-
Consult
$1628.96
241.2mm
0.0456X
2/3
-
Consult
$6072.11
62.7mm
0.255X
1
-
Consult
$1328.27
96.38mm
0.166X
1
-
Consult
$1707.78
240.9mm
0.066X
1
-
Consult
$6072.11
65mm
0.369X
4/3"
-
Consult
$1266.97
100mm
0.24X
4/3"
-
Consult
$1628.96
250mm
0.096X
4/3"
-
Consult
$6072.11
150mm
0.048X
1/2.5"
-
Consult
$3415.56
150mm
0.06X
1/1.8"
-
Consult
$3415.56
144mm
0.076X
2/3
-
Consult
$3415.56
145.45mm
0.11X
1
-
Consult
$3415.56
150mm
0.16X
4/3"
-
Consult
$3415.56
