DCX D=25.40mm F=25.40mm Uncoated CaF2 single crystal
Price Option
Product No. 110139
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Dia 25.40mm
- EFL 25.40mm
- Coating Uncoated
- Material CaF2 single crystal
- BFL 21.20mm
- R1 20.20mm
- CT 11.00mm
- ET 2.00mm
- Available Mount Ring 500018
- Design Wavelength 587.6nm
- Diameter Tolerance +0.0/-0.1
- Center Thickness Tolerance ±0.1
- Surface Accuracy --
- Focal Length Tolerance ±1%
- Centering Tolerance ＜3arcmin
- Surface Quality 40/20-60/40
- Bevel 0.2X45°
- n --

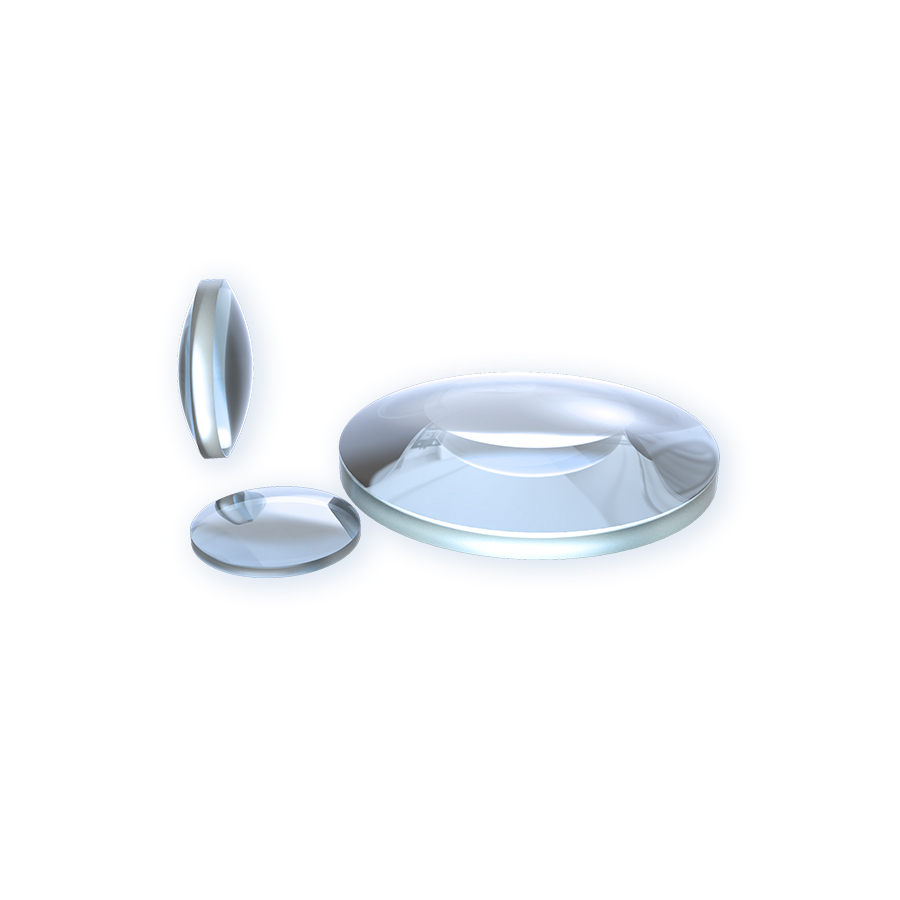

Double-Convex Lenses will focus light to a point. These lenses are made of two convex surfaces with equal radius. The focal length is positive. DCX Lenses are typically used in relay imaging systems or finite conjugate imaging systems. The larger the conjugate ratio, the larger the aberration in the imaging system . Grand Unified Optics offers uncoated or AR coating Double-Convex Lenses suitable for your application.
