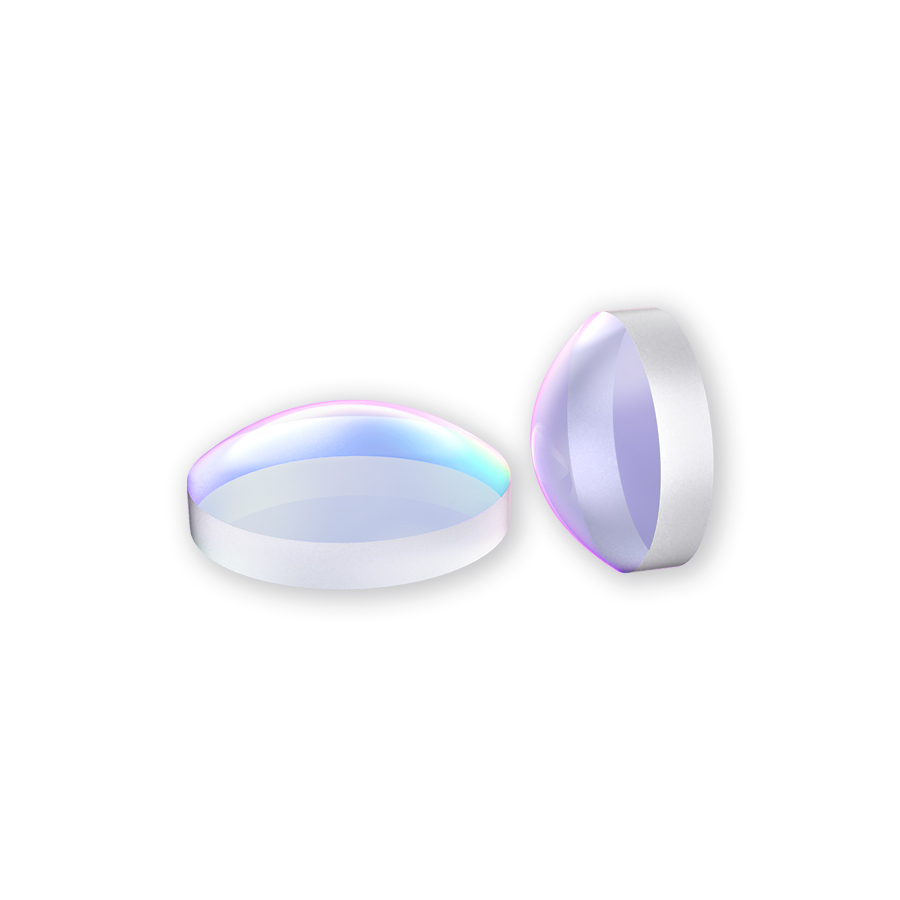

Aspheric Lenses UV D=12.50mm F=10.00mm Uncoated
Product No. 140655
Stock Please Consult
Express DHL, Fedex etc.

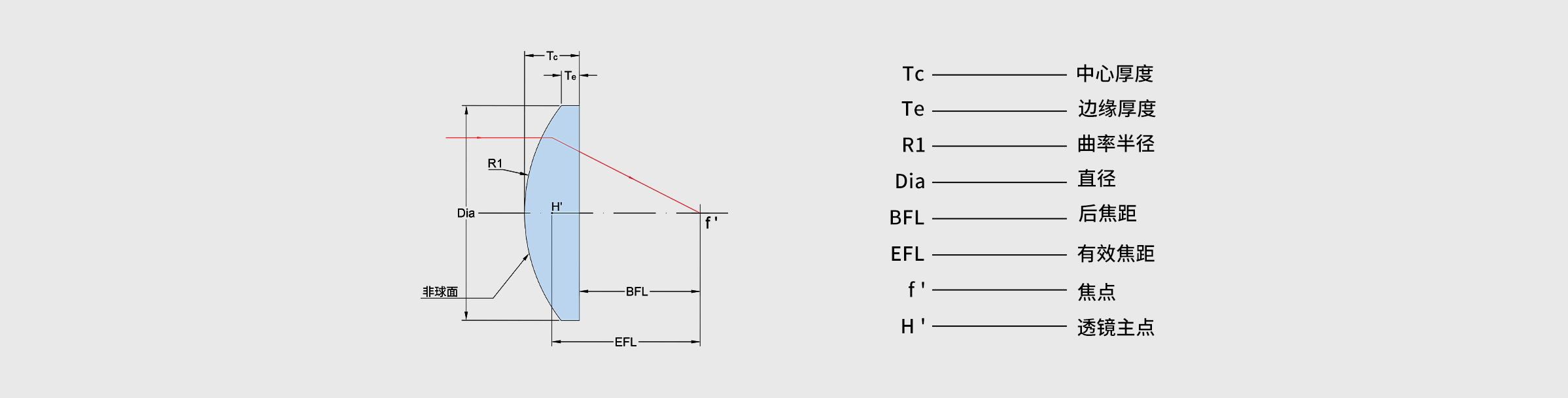

- Dia 12.50mm
- EFL 10.00mm
- Coating Uncoated
- Material UV-Grade Fused Silica JGS1
- BFL 4.90mm
- Collimation(Aspheric Side) φ11.43mm
- Focusing(Plano Side) φ8.4mm
- NA 0.65
- CT 7.50mm
- ET 1.90mm
- Design Wavelength 405nm
- Diameter Tolerance +0/-0.05mm
- Center Thickness Tolerance ±0.1mm
- Surface Accuracy λ/4@632.8nm
- Focal Length Tolerance ±1%
- Asphere Figure Error RMS0.75μm
- Centering Tolerance <3′
- Surface Quality 40/20
