Right Angle Mirror 12.5x12.5x12.5mm AU+Protected H-K9L optical glass
Price Option
Product No. 300029
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download

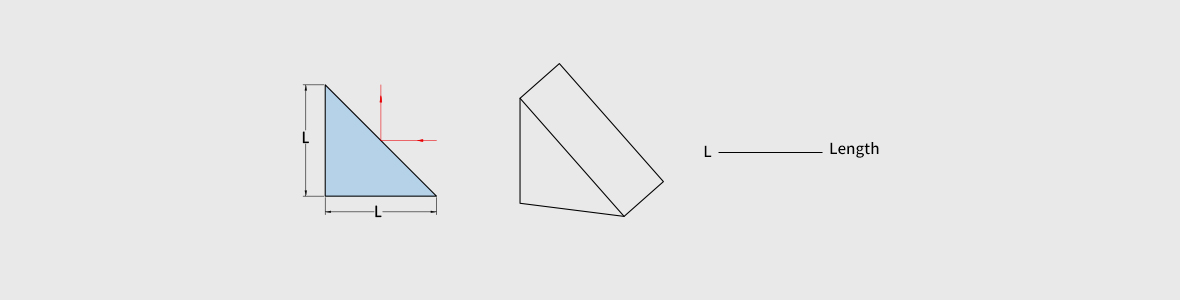

- Dia 12.5x12.5x12.5mm
- Coating Gold+Protected
- Pyramid Tolerance ＜10arcmin
- Material H-K9L optical glass
- Surface Accuracy λ/4@633nm
- Dia Tolerance ±0.1mm
- Surface Quality 40/20-60/40
- Angle Tolerance ±30 arcsec
- Bevel Protected Bevel 0.2mmX45°
Right angle mirrors can reflect incident light at 90°. Usually used to reflect Light at 90° or curve the image path and beam deviation or image synthesis. Image Optics provides a variety of reflective coated right angle mirrors.
