Laser Flat Window Φ30.0mm Thickness=6.0mm V633 H-K9L Optical Glass
Price Option
Product No. 416018
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Dia Φ30.0mm
- Thickness 6.0mm
- Coating R＜0.25%@632.8nm
- Material H-K9L
- Surface Accuracy λ/10@633 nm
- Parallelism ＜5arcsec
- Surface Quality 10-5~20-10
- Diameter Tolerance +0.0/-0.1mm
- Thickness Tolerance ±0.2mm
- Bevel Protective Bevel 0.2~0.5mmX45°

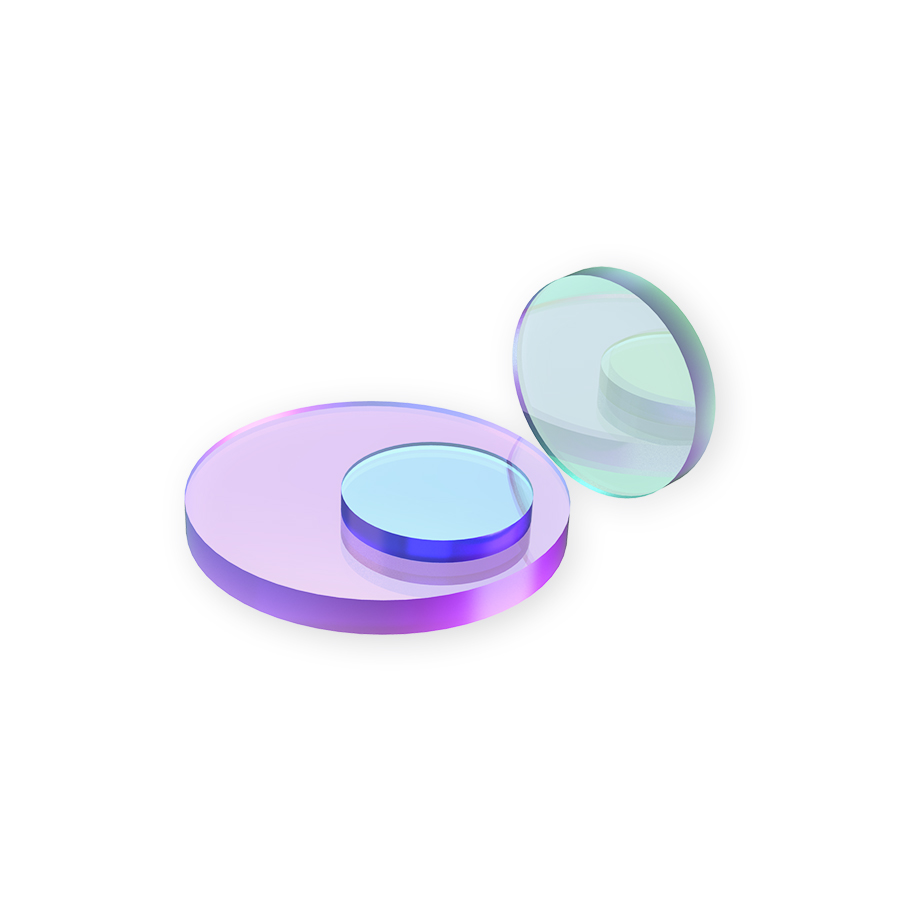

Flat windows are flat-parallel plates which can protect electronic sensors or detectors without blocking transmission. Flat windows do not change the magnification of the system. We offer various sizes of Laser flat windows.
