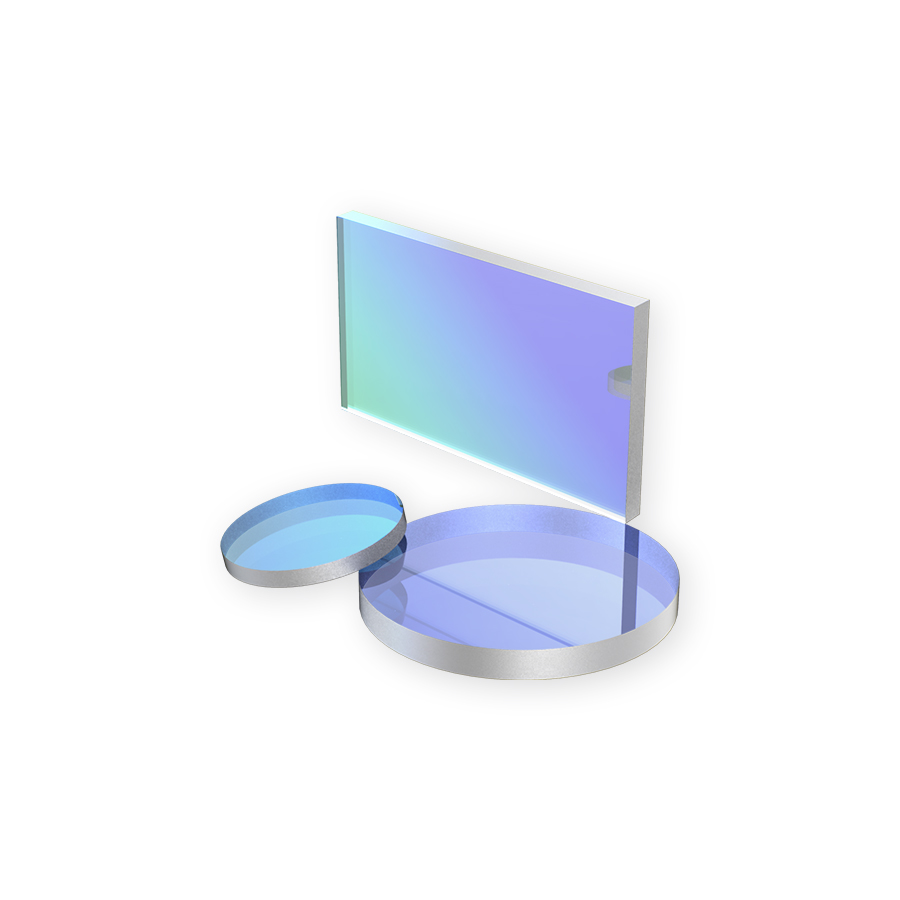

Borofloat® 33Laser Mirrors D=25.4mm 0-45° 441.6 nm
Price Option
Product No. 431016
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Dia Φ25.4mm
- Thickness 6.0mm
- Coating HR@441.6nm
- Reflectivity Rs,Rp＞98.5%
- Angle of Incidence 0-45°
- Material Borofloat® 33
- Irregularity(P-V) λ/10@632.8nm
- Damage Threshold 2J/cm2@10ns,Pulse
- Clear Aperture ＞80%
- Surface Quality ＜20-10
- Diameter Tolerance +0/-0.13 mm
- Thickness Tolerance ±0.25 mm
- Bevel Protective Bevel
Grand Unified Opticsoffer standard Zerodur Laser Line Mirrors with angle of incidence of 0°and 45°and spectrum ranges from 266nm to 20000nm. These laser line mirrors feature wide spectral range, large angle of incidence and high reflectivity which meet the needs of various laser reflection applications. We can offer customized Zerodur laser line mirrors to suit your requirements
