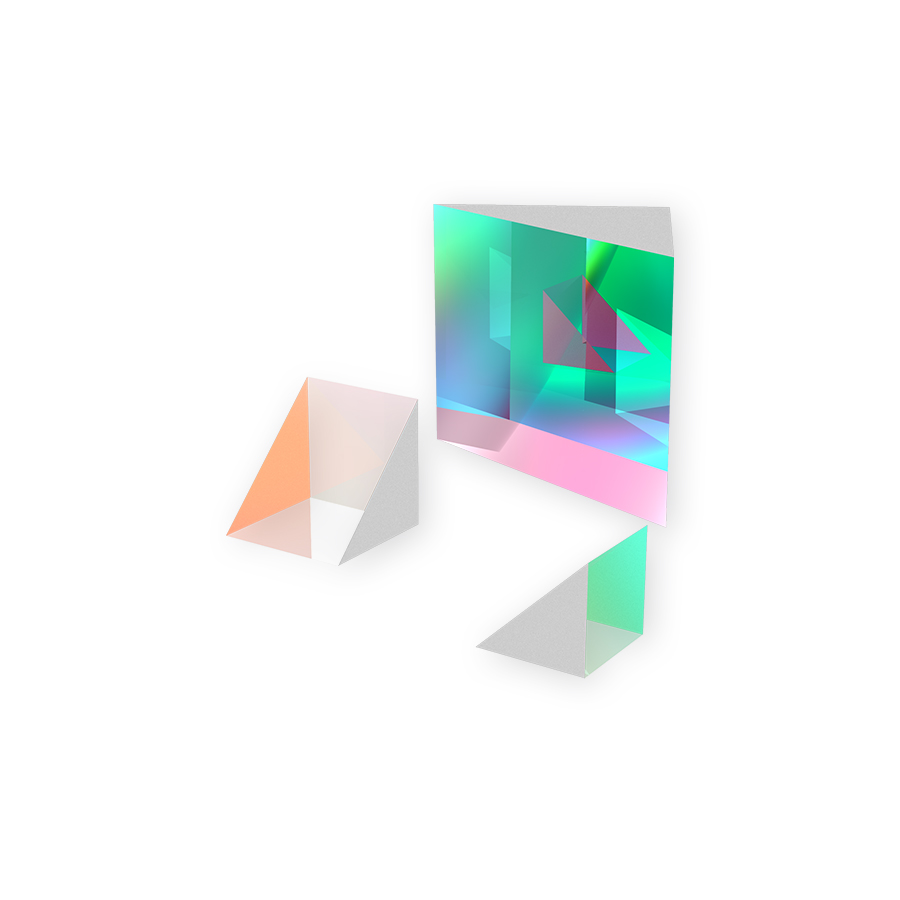

Laser Right Angle Prims A=B=C=25.0mm V633 H-K9L Optical Glass
Price Option
Product No. 469011
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download

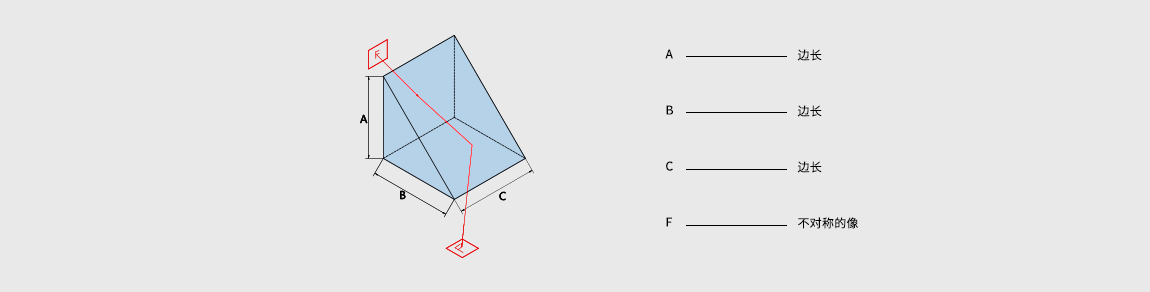

- Dimension A=B=C=25.0mm
- Coating Right-Angled-SurfaceR<0.25%@633nm
- Material H-K9L
- Dimension Tolerance +0.0/-0.1mm
- Surface Accuracy λ/10@632.8nm
- Surface Quality 10-5
- Angle Tolerance ±15arcsec
- Pyramid Tolerance ＜5arcmin
- Bevel ＜0.25mmX45°
Right angle prisms are typically used to bend the image path or turn the light path 90°, combing two right angle prism also can combine the image and deflect the beam. We recommend using 2 right angle prisms with hypotenuse aluminum coated for applications with large AOI. Grand Unified Opticsoffers a wide range of right angle prisms to suit your application
