Standard Optical Mounts Optics Diameter=25.4mm Disc Springg + Spring
Price Option
Product No. 519853
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download

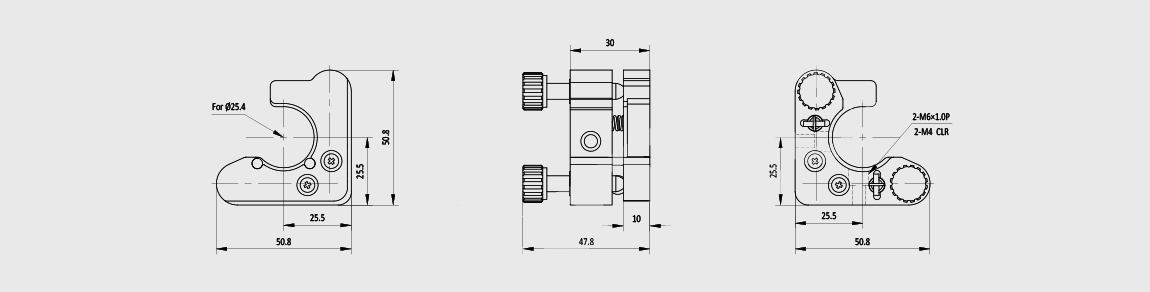

- Optics Diameter Φ25.4mm
- Reset mode Disc-Spring+Spring
* High resolution positioning and ensure the stability
* High repeatability and durability
*Contact with the steel ball at the front end of the adjusting screw knob is a wear-resistant metal
* Contact with the front steel beads is made of wear resistant metal material.
* Screw gap almost can be neglected
* Stainless steel screw and bronze ring bushing combined together, make it more smoother operation and long-term stability.
* Avaliable for many kinds of diameters.of optical components
* Tip/Tilt Range:±3.5°
