5 Axis Kinematic Mount Clamping Size of Optics 25.4mm





Share

WeChat

Scan and add Wechat

5 Axis Kinematic Mount Clamping Size of Optics 25.4mm

Price Option

Product No. 521900

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Adjustable Axis 5

Clamping Size of Optics 25.4mm

Weight 0.16kg

Tip and Tilt Prism Platform Mounts Platform Size47x47mm

6 Axis Kinematic Mount Clamping Size of Optics 25.4mm

Prism Mounts Size of Compatible Optics 52mm

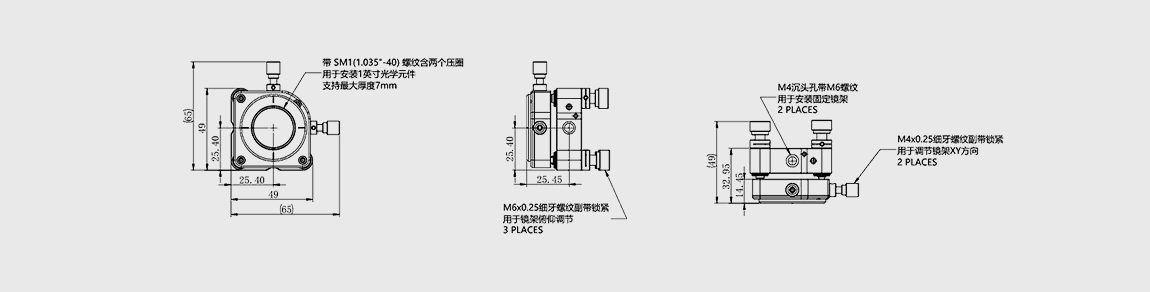

Five Axis of Lockable Adjustment.Two M4 Counterbores for Post Mounting.Compact Size, Mount Ø25.4 mm optics up to 8mm thick using the included SM1 Retaining Ring. X and Y Translation: ±1.0 mm, Z Translationa: ±3mm.Five-Axis available plus rotational adjustment, we offer 6-Axis Kinematic Mount.
