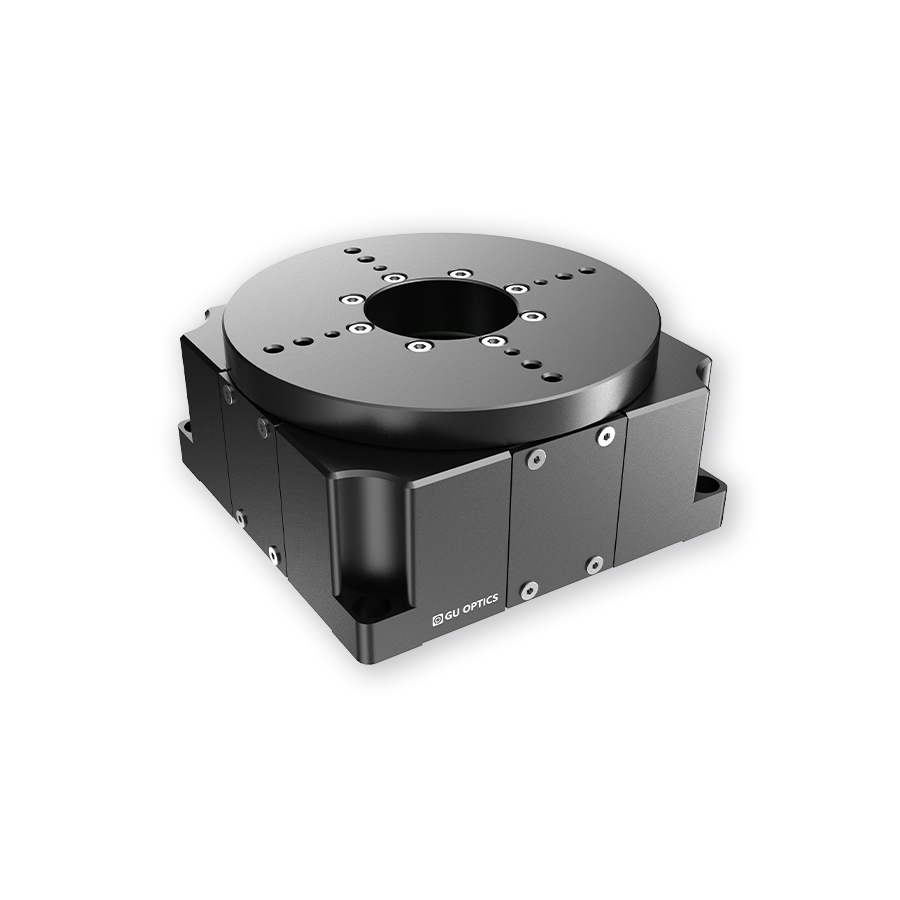

Motorized Nano Rotation Stages Stage Size=100mm Travel=360°
Price Option
Product No. 526911
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download

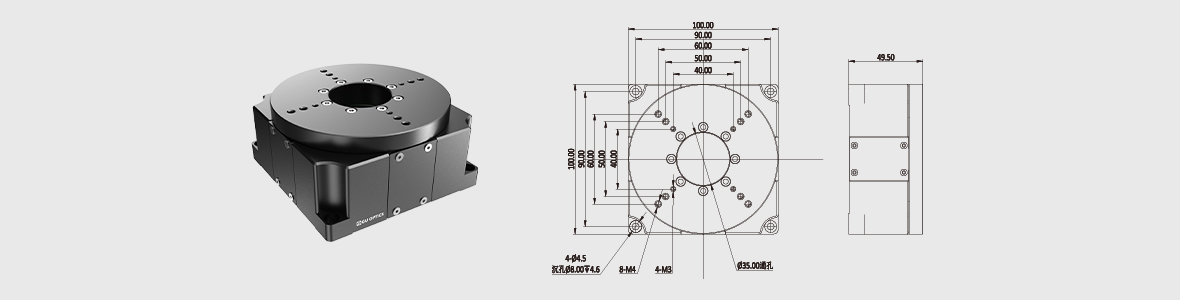

- Stage Diameter. 100mm
- Travel 360°
- Motor Drive 压电马达
- Max Speed 10°/s
- Max load 5kg
- Min Step 0.001°
- Repositioning Accuracy +/-0.002°
- Position Sensor /
- Body Maerial 铝合金
- weight 1.1kg
- Radial Error ≤0.05mm
- Axial Error ≤0.05mm
- Tilt Error ≤0.04°
Single/Double piezoelectric motor drive
Use stainless steel crossed-roller bearing
With power-off self-locking , brake function and no return backlash
Minimum stepping rotation angle 0.06 second
Compact design, other sizes can be customized
