Motorized Nano Vertical Stages Travel=5mm Motor Drive:M304
Price Option
Product No. 526951
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Travel 6mm
- Motor Drive Piezoelectric Motor
- Max Load 0.5kg
- Max Speed 20mm/sec
- Min Step 50nm
- Repositioning Accuracy +/-300nm
- Position Sensor Imported Grating
- Body Maerial Aluminium Alloy

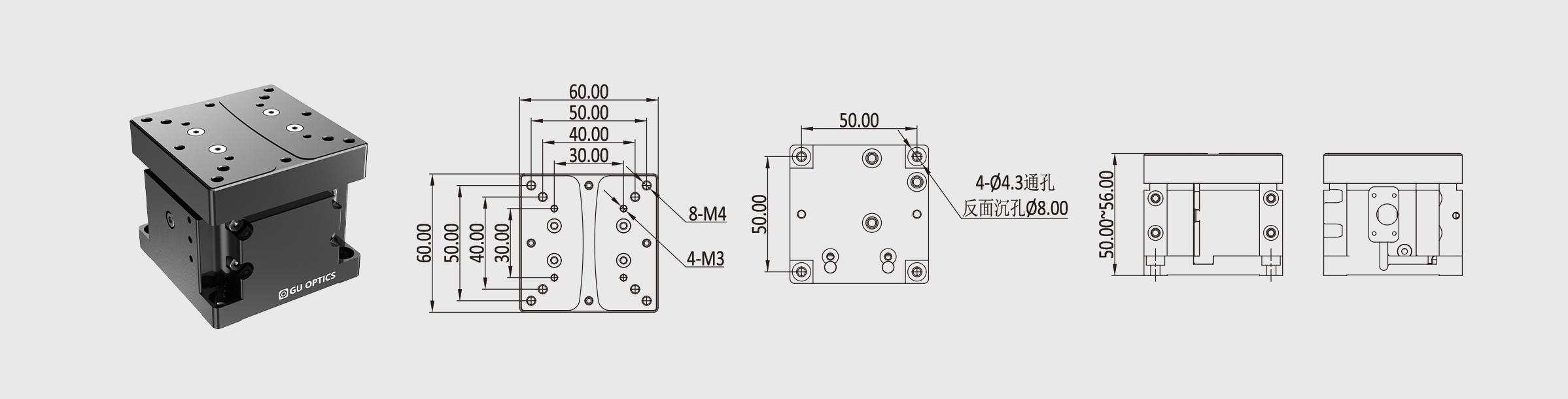

- Geometry Dimension 60×60×50mm
- Weight 0.5kg
Wedge shape design, single/double piezoelectric motor drive With power-off self-locking , brake function and no return backlash Minimum stepping 20nm Can choose magnetic grating ruler or grating ruler as position feedback sensor Compact design, can be combined with other stages to form a multi-axis module.
