Home  Products  X-Y-Z Motorized Nano Displacement Stages  527101

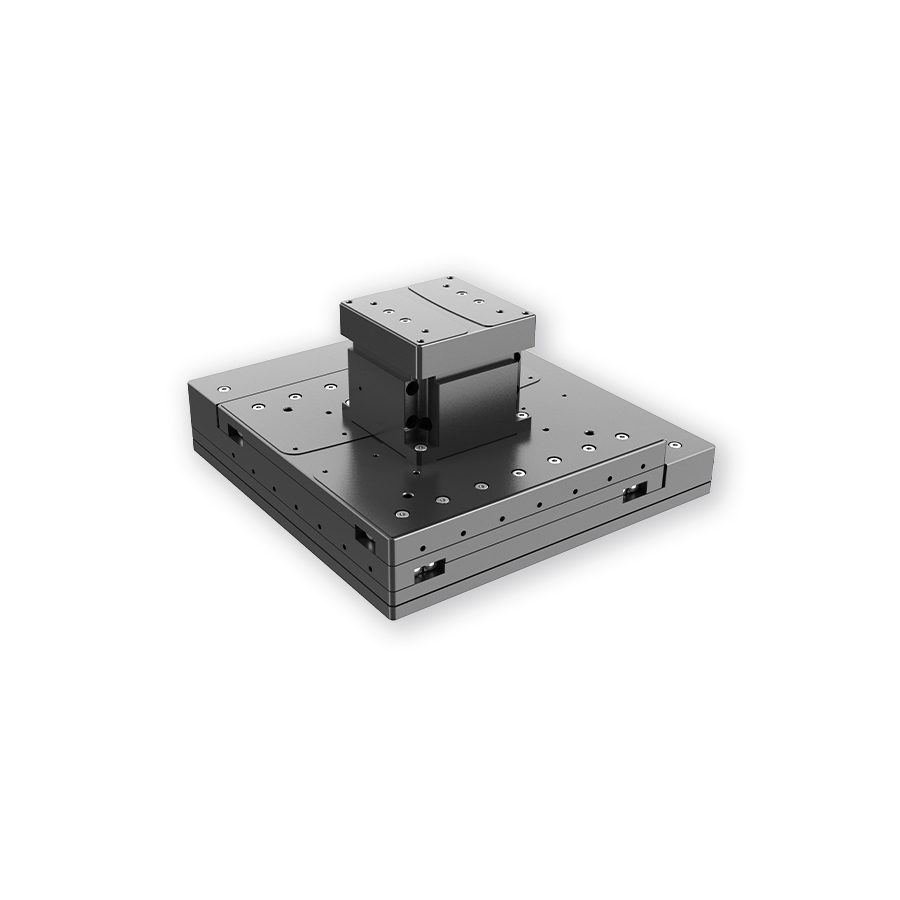

X-Y-Z Motorized Nano Displacement Stage





Share

WeChat

Scan and add Wechat

New X-Y-Z Motorized Nano Displacement Stage

Price Option Please Consult

Product No. 527101

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

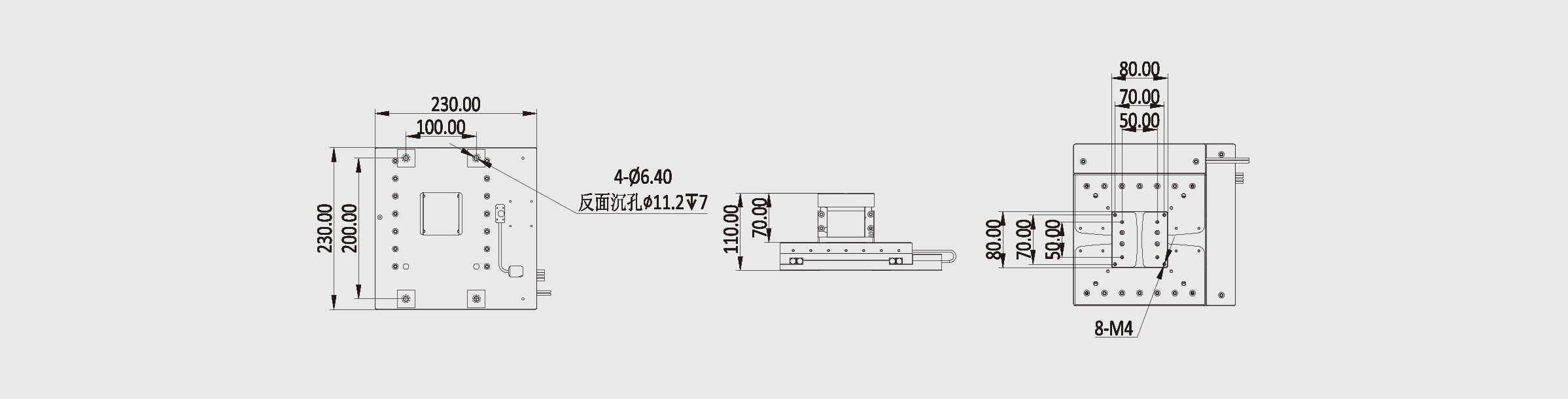

CAD PDF Auto CAD DXF Solidworks eDrawing Step

Parameters Related Products Description

Travel X-axis:105mm，Y-axis:105mm，Z-axis:10mm

Max load 1Kg

Drive Mode Piezoelectric motor

Minimum step 50nm

Max Speed 5mm/s

Repositioning Accuracy ±0.2um

Material Aluminium Alloy

50nm Piezoelectric Nano Translation Stages Stage Size=60×60mm Travel=18mm

50nm Piezoelectric Nano Translation Stages Stage Size=70×70mm Travel=25mm

X-Y Motorized Linear Translation Stage

X-Y Motorized Linear Goniometers Stages

Full piezoelectric motor drive Ultra high precision With power-off self-locking , brake function and no return backlash Simple and compact design
