50mm 4/3" 10M Fixed Focal Length Lens
Price Option
Product No. 600020
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 50mm
- F/# 2
- Max. sensor size 4/3"
- Mount C
- Resolution 10MP
- Working Distance 0.3m～∞
- Filter Thread M40.5X0.5mm
- FOV 25.9°×20.9°×15.7°
- Distrotion -0.14%@y=11.5mm
- Weight 170g
| No. | Item | Specifications | |
| 1 | Max. sensor size | 4/3"(23mm） | |
| 2 | Focal Length | 50mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F2.0-F22 | |
| 5 | Working Distance | 0.3m～∞ | |
| 6 | FOV(Diagonal x H xV) | 4/3" | 25.9°×20.9°×15.7° |
| 1" | 18.2°×14.6°×11.0° | ||
| 1/2" | 9.1°×7.3°×5.5° | ||
| 1/3" | 6.9°×5.5°×4.1° | ||
| 7 | Object Size (at the minimum focus distance) |
4/3" | 118.8×95.0×71.2mm |
| 1" | 82.6×66.0×49.5mm | ||
| 1/2" | 41.3×33.0×24.8mm | ||
| 1/3" | 31.0×24.8×18.6mm | ||
| 8 | BFL（in air） | 20.29mm | |
| 9 | Operation | Focus | Manual |
| Aperture | Manual | ||
| 10 | Distortion | 4/3" | -0.14%@y=11.5mm |
| 1" | -0.05%@y=8.0mm | ||
| 1/2" | -0.01%@y=4.0mm | ||
| 1/3" | -0.005%@y=3.0mm | ||
| 11 | Filter thread | M40.5×0.5mm | |

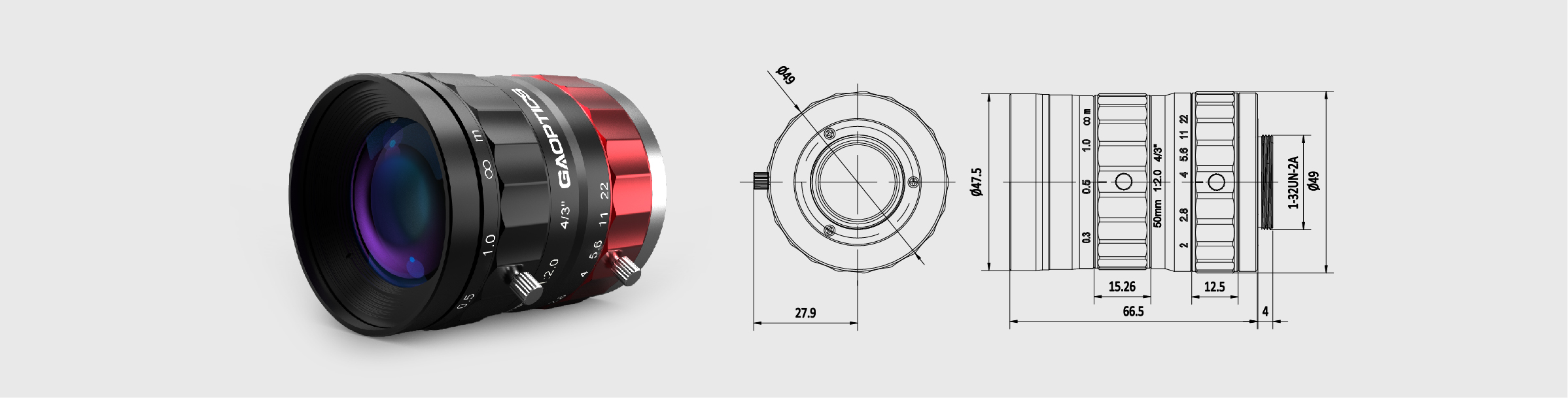

| 12 | Lens Size(W x L) | 52.4×70.5mm | |
| 13 | Weight | 170g | |
| 14 | Work Temperature | -10℃～+50℃ | |
| 15 | Distance of entrance pupil | 33.38mm | |
| 16 | Diameter of entrance pupil | 25.03mm | |
| 17 | Distance of exit pupil | -40.77mm | |
| 18 | Diameter of exit pupil | 20.41mm | |
| 19 | Total optical length | 66.30mm | |
| 20 | Magnification | -0.1942 | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
| 300mm | -0.19420 | 0.5283 | 0.5301 |
| 350mm | -0.16262 | 0.7188 | 0.7218 |
| 400mm | -0.13988 | 0.9386 | 0.9430 |
| 450mm | -0.12271 | 1.1876 | 1.1939 |
| 500mm | -0.10930 | 1.4657 | 1.4743 |
| 550mm | -0.09852 | 1.7730 | 1.7845 |
| 600mm | -0.08969 | 2.1094 | 2.1243 |
| 650mm | -0.08231 | 2.4748 | 2.4938 |
| 700mm | -0.07604 | 2.8694 | 2.8931 |
| 750mm | -0.07067 | 3.2930 | 3.3222 |
GA 4/3" 10M FA lens is specially designed for 4/3" imaging sensors. Standard c-mount design, can matching most of c-mount cameras; The maximum focal length up to 85mm, imaging diameter reach to 23mm, it has great advantages for large imaging applications.
Product characteristics
1. 10 Mega pixels, 4/3" imaging Format，150lp/mm@±8.8mm，100lp/mm@±11.5mm;
2. Full focal length covers 8-85 mm;
3. Max image diameter up to23mm, compatible area Camera and Line scan camera;
4. Standard C-mount design, matching C-mount industrial cameras.
