8mm 1" 8M Fixed Focal Length Lens
Product No. 600021
Stock In Stock
Express DHL, Fedex etc.
- Focal Length 8mm
- F/# 1.8
- Max. sensor size 1"
- Mount C
- Resolution 8MP
- Working Distance 0.3m~∞
- Filter Thread /
- FOV 90.06°x 77.16°x 61.30°
- Distrotion -4.12%@y=8.0mm
- Weight 76.6g
No. | Item | Specifications | |
1 | Max. sensor size | 1"(16mm) | |
2 | Focal Length | 8mm | |
3 | Mount | C-Mount | |
4 | F/# | F1.8-F11C | |
5 | Working Distance | 0.3m~∞ | |
6 | FOV(Diagonal x H xV) | 1" | 90.06°×77.16°×61.30° |
1/2" | 52.26°×42.58°×32.40° | ||
1/3" | 40.08°×32.40°×24.48° | ||
7 | Object Size (at the minimum focus distance) |
1" | 665.02×523.52×385.92mm |
1/2" | 318.64×252.68×188.08mm | ||
1/3" | 236.42×188.08×140.42mm | ||
8 | BFL(in air) | 12.7mm | |
9 | Operation | Focus | Manual |
Aperture | Manual | ||
10 | Distortion | 1" | -4.12%@y=8.0mm |
1/2" | -2.14%@y=4.0mm | ||
1/3" | -1.34%@y=3.0mm | ||
11 | Filter thread | / | |

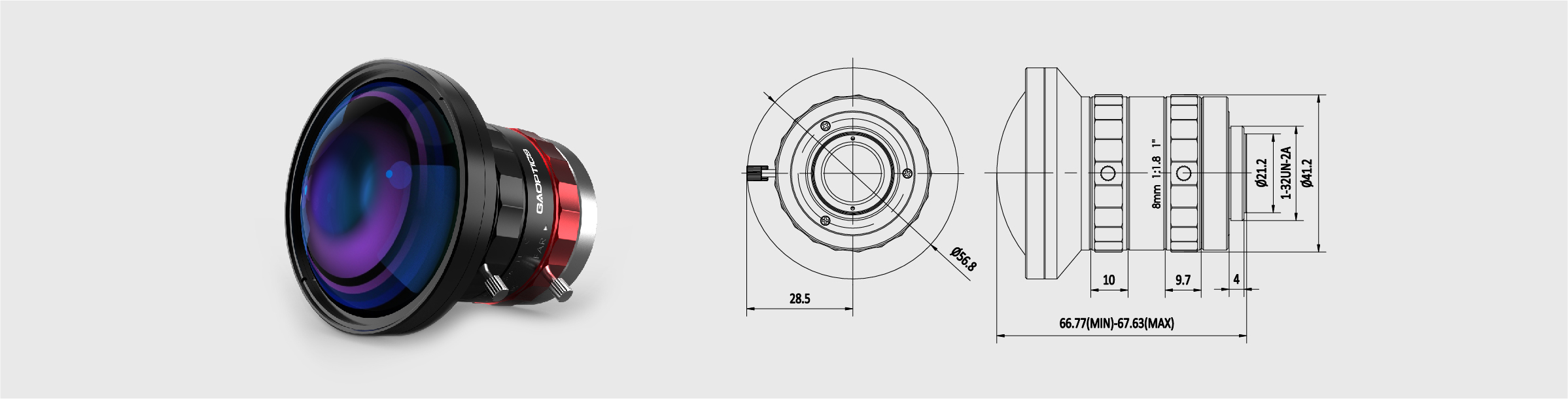

12 | Lens Size(W x L) | 56.8×67.63mm | |
13 | Weight | 76.6g | |
14 | Work Temperature | -10℃~+50℃ | |
15 | Distance of entrance pupil | 22.92mm | |
16 | Diameter of entrance pupil | 4.51mm | |
17 | Distance of exit pupil | -36.72mm | |
18 | Diameter of exit pupil | 20.49mm | |
19 | Total optical length | 80.26mm | |
20 | Magnification | -0.02581 |
Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
300mm | -0.02581 | 11.8397 | 12.8543 |
350mm | -0.02235 | 16.0099 | 17.6220 |
400mm | -0.01971 | 20.7751 | 23.1832 |
450mm | -0.01763 | 26.1239 | 29.5554 |
500mm | -0.01595 | 32.0450 | 36.7564 |
550mm | -0.01456 | 38.5275 | 44.8046 |
600mm | -0.01339 | 45.5608 | 53.7190 |
650mm | -0.01240 | 53.1344 | 63.5192 |
700mm | -0.01154 | 61.2382 | 74.2251 |
750mm | -0.01079 | 69.8624 | 85.8577 |
Product characteristics
1. 8 Mega pixels, 1" imaging Format,150lp/mm@±8mm;
2. Focal length covering 8-75 mm;
3. Large optical format & high resolution;
4. Compact design, Meet the limited usage space.
