12mm 1.8" 6M Fixed Focal Length Lens
Price Option
Product No. 600038
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 12mm
- F/# 1.8
- Max. sensor size 1/1.8"
- Mount C
- Resolution 6MP
- Working Distance 0.1m～∞
- Filter Thread M27.5×0.5mm
- FOV 41.56°×33.52°×25.29°
- Distrotion -2.39%@y=4.5mm
- Weight 51.1g
| No. | Item | Specifications | |
| 1 | Max. sensor size | 1/1.8"(9.0mm) | |
| 2 | Focal Length | 12mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F1.8-F11 | |
| 5 | Working Distance | 0.1m~∞ | |
| 6 | FOV(Diagonal x H xV) | 1/1.8" | 41.56°×33.52°×25.29° |
| 1/2.3" | 36.61°×29.47°×22.20° | ||
| 1/2.5" | 33.52°×27.25°×20.51° | ||
| 7 | Object Size (at the minimum focus distance) |
1/1.8" | 86.82×69.46×52.092mm |
| 1/2.3" | 75.49×60.39×45.29mm | ||
| 1/2.5" | 69.43×55.54×41.66mm | ||
| 8 | BFL（in air） | 10.033mm | |
| 9 | Operation | Focus | Manual |
| Aperture | M-Iris | ||
| 10 | Distortion | 1/1.8" | -2.39%@y=4.5mm |
| 1/2.3" | -1.85%@y=3.9mm | ||
| 1/2.5" | -1.59%@y=3.6mm | ||
| 11 | Filter thread | M27.5×0.5mm | |

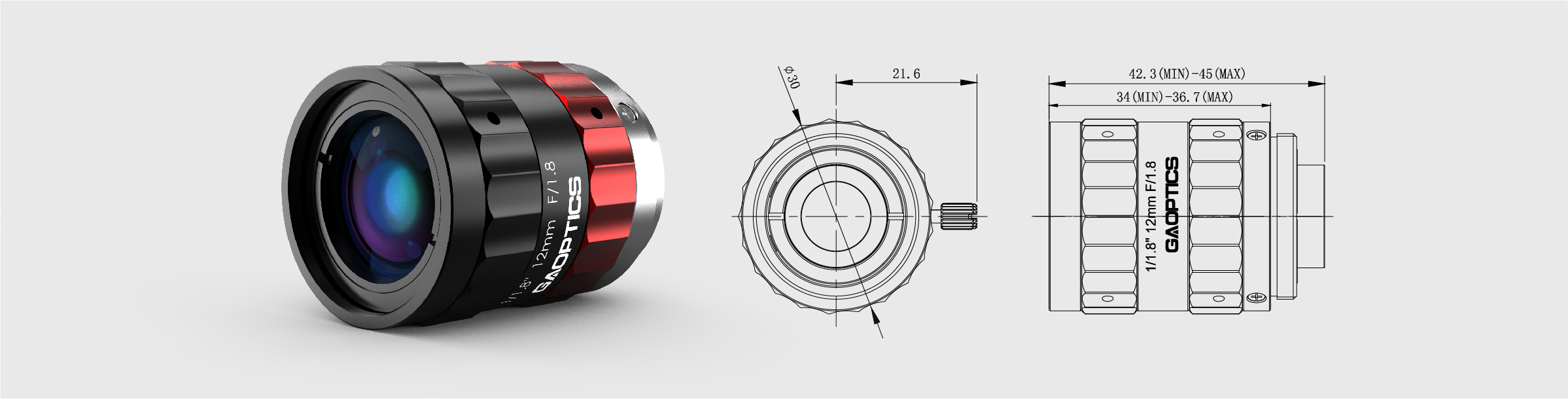

| 12 | Lens Size(W x L) | 36.6×45mm | |
| 13 | Weight | 51.1g | |
| 14 | Work Temperature | -10℃～+50℃ | |
| 15 | Distance of entrance pupil | 22.299mm | |
| 16 | Diameter of entrance pupil | 6.675mm | |
| 17 | Distance of exit pupil | -35.586mm | |
| 18 | Diameter of exit pupil | 19.780mm | |
| 19 | Total optical length | 54.533mm | |
| 20 | Magnification | -0.10607 | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
| 100mm | -0.10607 | 0.448 | 0.452 |
| 150mm | -0.07358 | 1.0057 | 1.0194 |
| 200mm | -0.05633 | 1.7939 | 1.8163 |
| 250mm | -0.04563 | 2.7812 | 2.8445 |
| 300mm | -0.03834 | 3.966 | 4.1054 |
| 350mm | -0.03307 | 5.427 | 5.6007 |
| 400mm | -0.02906 | 7.0727 | 7.3319 |
| 450mm | -0.02593 | 8.9316 | 9.3008 |
| 500mm | -0.0234 | 11.0024 | 11.5089 |
| 550mm | -0.02132 | 13.2837 | 13.9579 |
GA 1/1.8" 6M FA lens has very good optical performance, suitable for industrial automation, biomedical, industrial inspection and other fields. It adopts 1/1.8" sensor design, with a high resolution of “230lp/mm, 2.2um and 2.4um pixels", high consistency between center and edge, compatible 1/2.5" and 1/1.8" industrial cameras well. Small size and compact design, ideal used limited usage space.
Product characteristics
1. 1/1.8" Small Format design;
2. 230lp/mm@±4.5mm, high resolution;
3. Focal length covers 8-50 mm;
4. Compact design and Small size;
5. Special optical optimization, very high consistency between center and edge.
