GA 2/3" 25mm Macro lens
Price Option
Product No. 600047
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 25mm
- F/# 4
- Max. sensor size 2/3"
- 接 口 C
- Resolution 6MP
- Working Distance 0.12m~0.4m
- Filter Thread M27×0.5mm
- FOV 24.29°×19.50°×14.66°
- Distrotion -0.83%@y=5.5mm
- Weight 65.5g
| No. | Item | Specifications | |
| 1 | Max. sensor size | 2/3"(11mm) | |
| 2 | Focal Length | 25mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F4-F11 | |
| 5 | Working Distance | 0.12m～0.4m | |
| 6 | FOV(Diagonal x H xV) | 2/3" | 24.29°×19.50°×14.66° |
| 1/1.8" | 19.94°×15.98°×12.01° | ||
| 1/2.3" | 15.54°×12.45°×9.35° | ||
| 7 | Object Size (at the minimum focus distance) |
2/3" | 55.06×43.74×32.64mm |
| 1/1.8" | 44.76×35.65×26.65mm | ||
| 1/2.3" | 36.65×27.64×20.69mm | ||
| 8 | BFL（in air） | 9.098mm | |
| 9 | Operation | Focus | Manual |
| Aperture | Manual | ||
| 10 | Distortion | 2/3" | -0.83%@y=5.5mm |
| 1/1.8" | -0.55%@y=4.5mm | ||
| 1/2.3" | -0.34%@y=3.5mm | ||
| 11 | Filter thread | M27×0.5mm | |

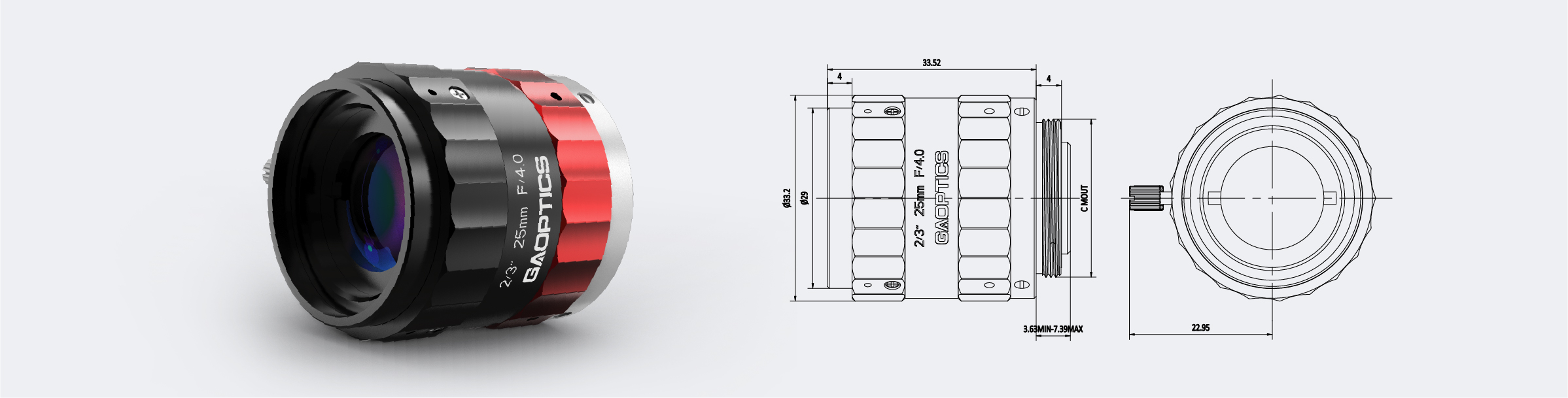

| 12 | Lens Size(W x L) | 39.55×49.01mm | |
| 13 | Weight | 65.5g | |
| 14 | Work Temperature | -10℃～+50℃ | |
| 15 | Distance of entrance pupil | 20.842mm | |
| 16 | Diameter of entrance pupil | 6.423mm | |
| 17 | Distance of exit pupil | -50.084mm | |
| 18 | Diameter of exit pupil | 11.192mm | |
| 19 | Total optical length | 45.45mm | |
| 20 | Magnification | -0.08176 | |
.
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
| 120mm | -0.20366 | 0.4590 | 0.4626 |
| 150mm | -0.16304 | 0.7166 | 0.7235 |
| 200mm | -0.12234 | 1.2719 | 1.2882 |
| 250mm | -0.09796 | 1.9841 | 2.0161 |
| 300mm | -0.08173 | 2.8526 | 2.9079 |
| 350mm | -0.07014 | 3.8766 | 3.9644 |
| 400mm | -0.06143 | 5.0553 | 5.1864 |
Macro lens generally refers to the Fixed Focal Length Lenses with short working distance. In some application scenarios, users need to use close shot, the general Fixed Focal Length Lenses is difficult to meet the needs of close shot, and the macro lens is designed to solve this scene. Gu-Optics’s Macro lens max imaging size up to 17.6mm, with a high resolution of 200lp/mm, covering all different working distances, and provide users with more choices
