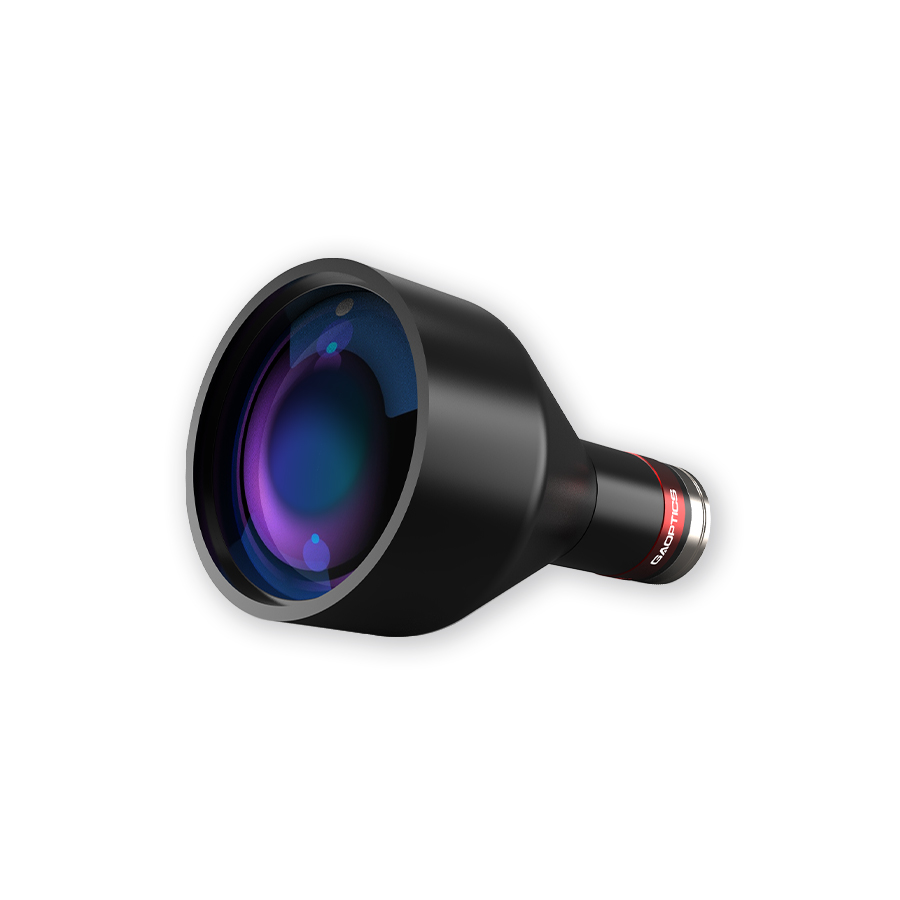

0.111X Working Distance 210mm 1/2.5
Price Option
Product No. 610000
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 7.2mm
- FOV 65mm
- Magnification 0.111X
- Working Distance 211mm
- Max. sensor size 1/2.5"
- F/# 4.1
- Distrotion ＜0.05%
- Telecentricity ＜0.06°
- DOV ±13.31mm
- MTF ＞30%@210lp/mm
- Illumination Port -
- Mount C-Mount
- Length 143.5mm
- Diameter 87.4mm
- Weight 732g
| NO | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.111X | |
| 3 | Working Distance | 211.00mm | |
| 4 | DOV | ±13.31mm | |
| 5 | Telecentricity | ＜0.06° | |
| 6 | Distortion | ＜0.05% | |
| 7 | F/# | F4.1 | |

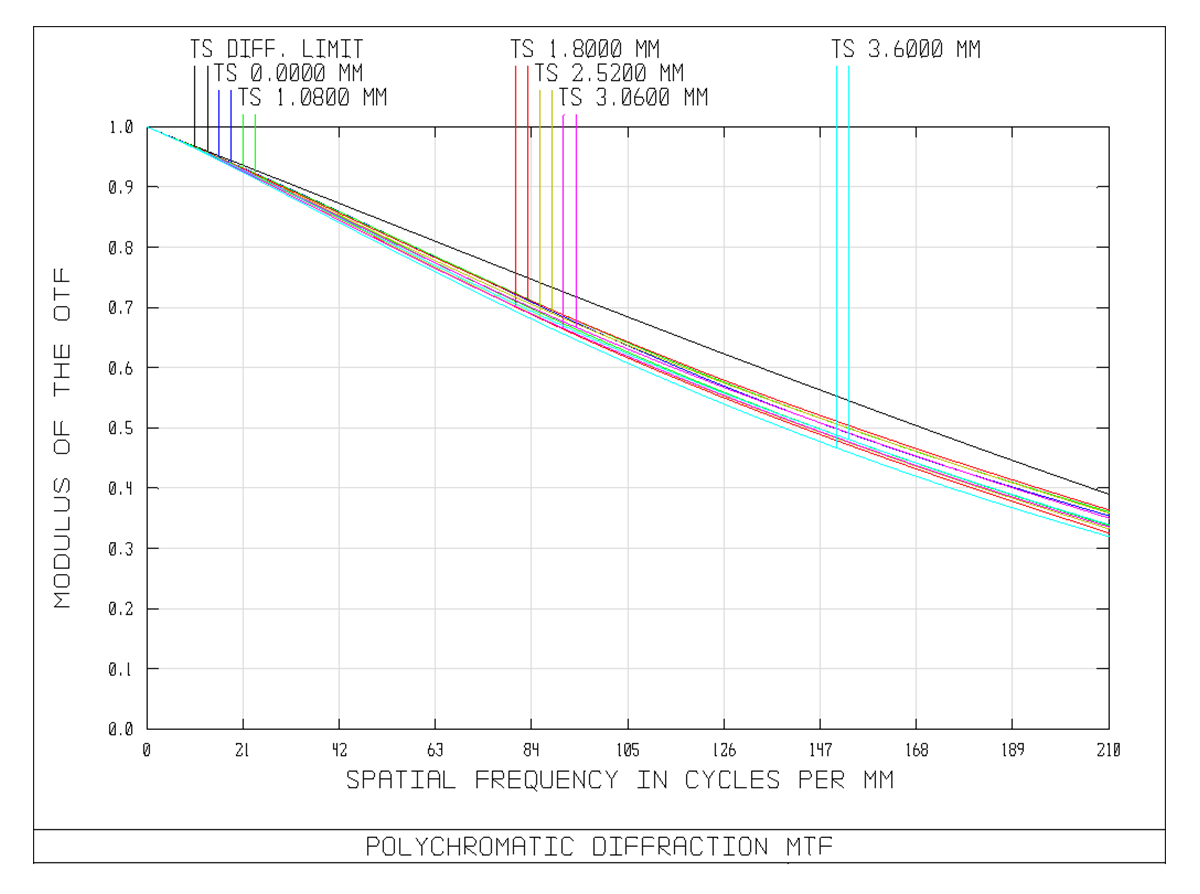

| 8 | Resolution/MTF @F4.1 | ＞30%@210lp/mm | |
| 9 | Max Object Space FOV | Ф64.8mm | |
| 10 | Max Image Space FOV | Ф7.2mm | |
| 11 | FOV（H×V） | 1/2.5" | 52.3×38.7mm |
| 12 | Lens Mount | C-Mount | |

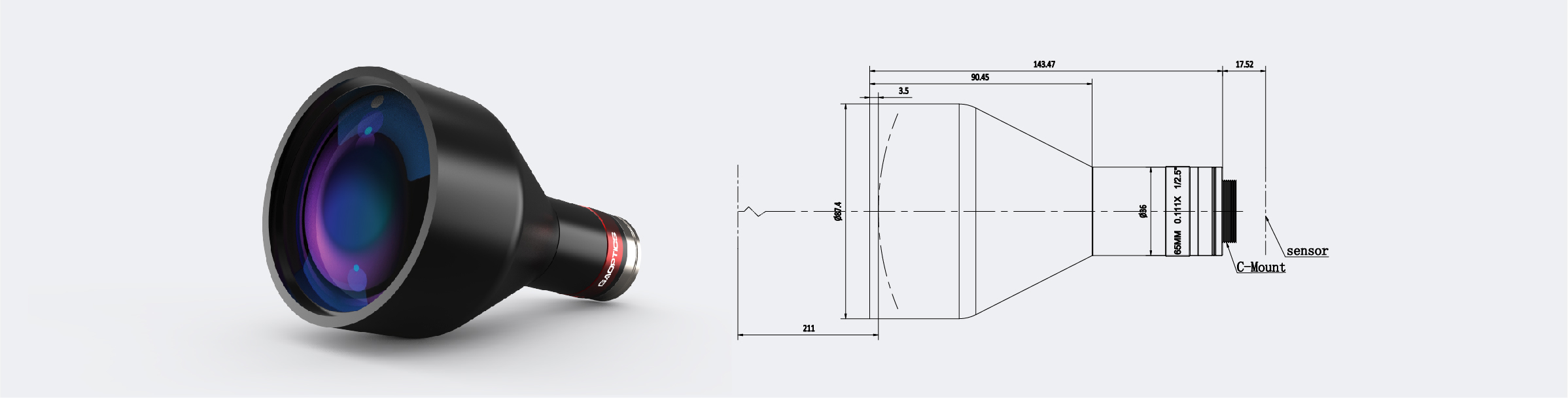

| 13 | Lens Size（Dia.×Length） | Ф87.4×143.5mm | |
| 14 | The distance from the front end of imaging lens to the first surface of the first glass lens | 3.5mm | |
GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
