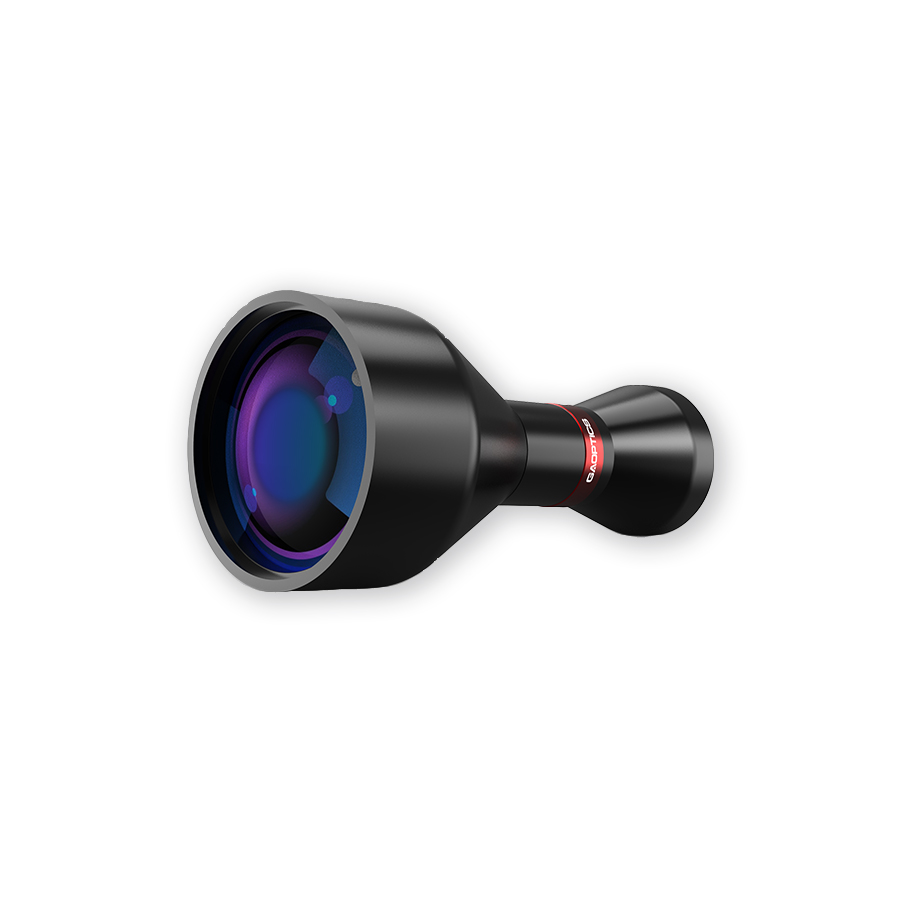

0.369X Working Distance 210mm 4/3
Price Option
Product No. 610024
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 24mm
- FOV 65mm
- Magnification 0.369X
- Working Distance 211mm
- Max. sensor size 4/3"
- F/# 8
- Distrotion ＜0.04%
- Telecentricity ＜0.1°
- DOV ±2.35mm
- MTF ＞30%@105lp/mm
- Illumination Port -
- Mount F-Mount
- Length 183.9mm
- Diameter 87.4mm
- Weight 957g
| NO | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.369X | |
| 3 | Working Distance | 211.00mm | |
| 4 | DOV | ±2.35mm | |
| 5 | Telecentricity | ＜0.1° | |
| 6 | Distortion | ＜0.04% | |
| 7 | F/# | F8 | |
| 8 | Resolution/MTF @F8 | ＞30%@105lp/mm | |
| 9 | Max Object Space FOV | Ф65mm | |
| 10 | Max Image Space FOV | Ф24mm | |
| 11 | FOV （H×V） |
4/3" | 51×37mm |
| 1" | 35×26mm | ||
| 2/3" | 24×18mm | ||
| 1/1.8" | 20×15mm | ||
| 1/2.5" | 15.7×11.7mm | ||
| 12 | Lens Mount | F-Mount | |

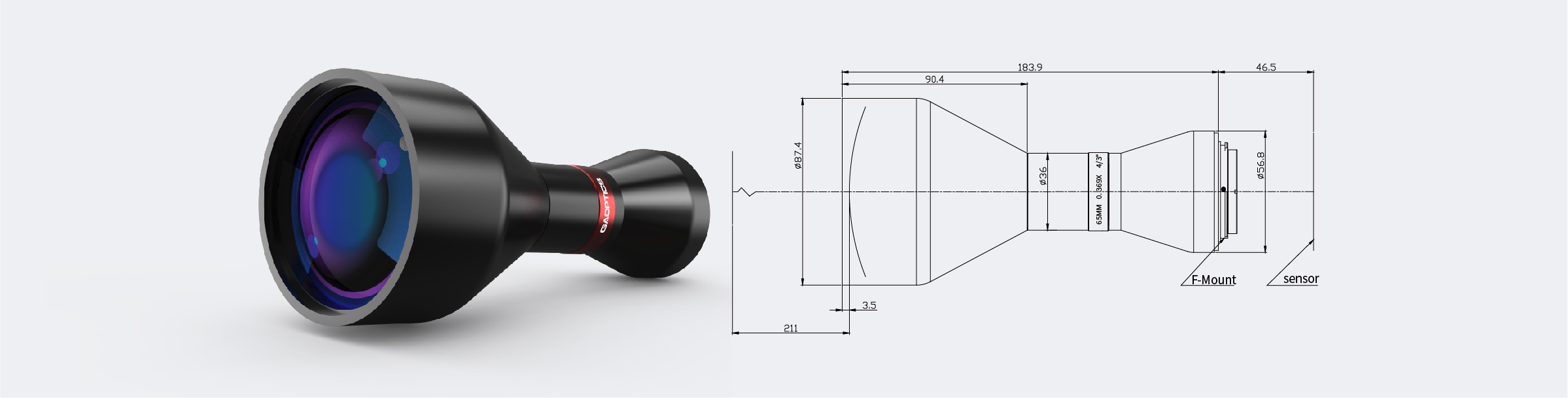

| 13 | Lens Size（Dia.×Length） | Ф87.4×183.9mm | |
| 14 | The distance from the front end of imaging lens to the first surface of the first glass lens | 3.5mm | |
GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
