0.5X Working Distance 130mm 2/3
Price Option
Product No. 610031
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 11mm
- FOV 22mm
- Magnification 0.5X
- Working Distance 130mm
- Max. sensor size 2/3"
- F/# 12
- Distrotion ＜0.03%
- Telecentricity ＜0.03°
- DOV ±1.92mm
- MTF ＞30%@70lp/mm
- Illumination Port -
- Mount C-Mount

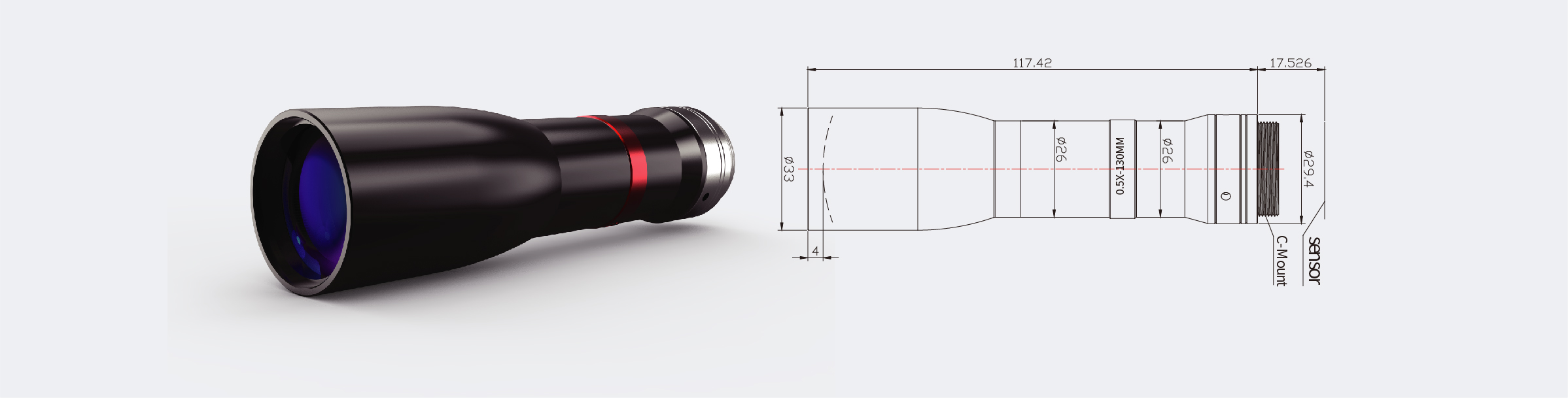

- Length 117.42mm
- Diameter 33mm
- Weight 172g
| NO | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.5X | |
| 3 | Working Distance | 130.00mm | |
| 4 | Object Space DOV | ±1.92mm | |
| 5 | Telecentricity | ＜0.03° | |
| 6 | Distortion | ＜0.03% | |
| 7 | F/# | F12 | |
| 8 | Resolution/MTF @F12 | ＞30%@70lp/mm | |
| 9 | Max Object Space FOV | Ф22mm | |
| 10 | Max Sensor Size | Ф11mm | |
| 11 | FOV （H×V） |
2/3" | 17.6×13.2mm |
| 1/2" | 12.8×9.6mm | ||
| 12 | Filter Thread | M30.5×0.5mm | |
| 13 | Lens Mount | C-Mount | |
| 14 | Illumination Port | / | |
| 15 | Lens Size（Dia.×Length） | Ф33.0×117.42mm | |
| 16 | The distance from the front end of imaging lens to the first surface of the first glass lens | 4.0mm | |
Compact high magnification double telecentric lens is designed for small filed and high magnification, which covers 0.5X，1.0X，2.0X，3.5X
