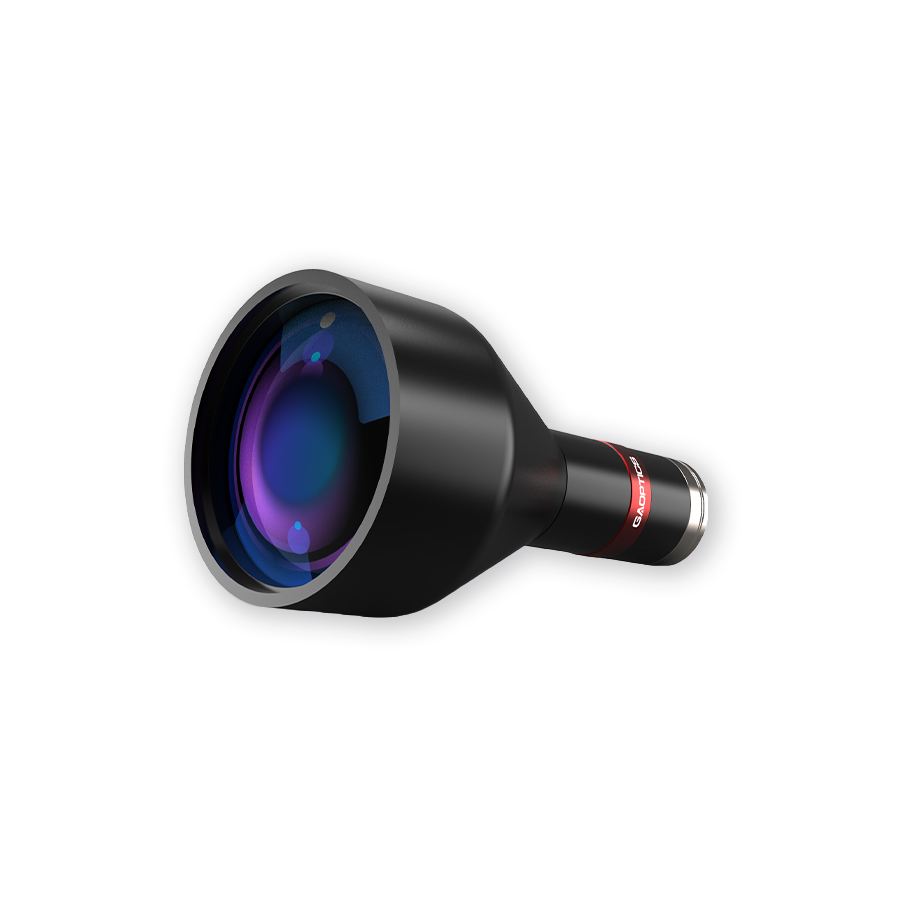

0.06X Working Distance 324mm 1/1.8
Price Option
Product No. 610039
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 9mm
- FOV 150mm
- Magnification 0.06X
- Working Distance 324mm
- Max. sensor size 1/1.8"
- F/# 4.7
- Distrotion ＜0.05%
- Telecentricity ＜0.03°
- DOV ±52.22mm
- MTF ＞30%@195lp/mm
- Illumination Port -
- Mount C-Mount
- Length 293.15mm
- Diameter 176.5mm
- Weight 5482g
| NO | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.060X | |
| 3 | Working Distance | 324mm | |
| 4 | DOV | ±52.22mm | |
| 5 | Telecentricity | ＜0.03° | |
| 6 | Distortion | ＜0.05% | |
| 7 | F/# | F4.7 | |
| 8 | Resolution/MTF @F4.7 | >30%@195lp/mm | |
| 9 | Max Object Space FOV | Φ9mm | |
| 10 | Max Image Space FOV | Φ150mm | |
| 11 | FOV （H×V） |
1/1.8" | 120×90mm |
| 1/2.5" | 96.7×71.7mm | ||
| 12 | Lens Mount | C-Mount | |

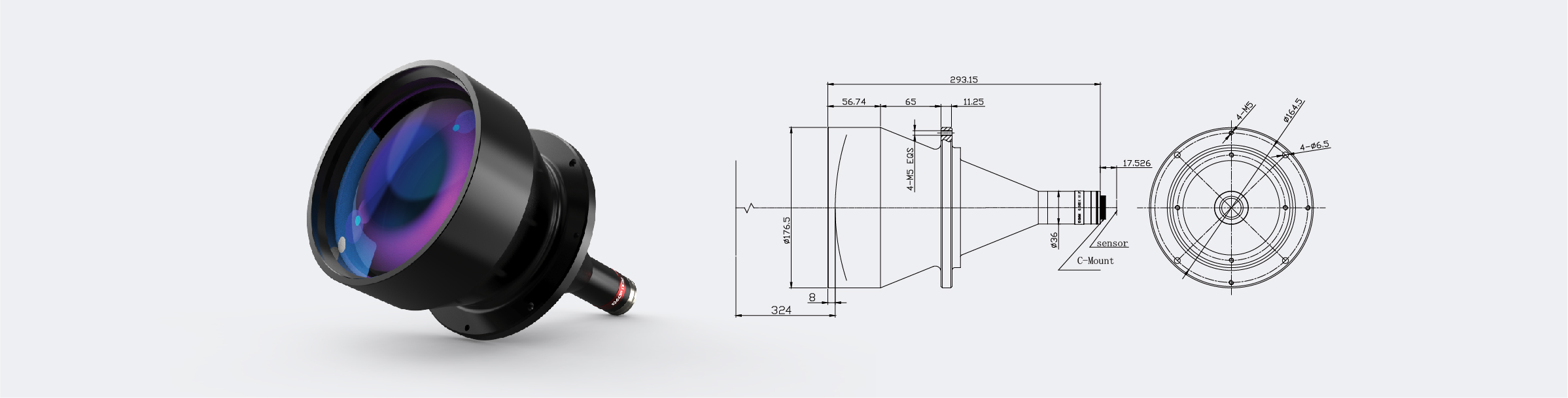

| 13 | Lens Size（Dia.×Length） | Φ176.5×293.15mm | |
| 14 | The distance from the front end of imaging lens to the first surface of the first glass lens | 8mm | |
GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
