0.076X Working Distance 324mm 2/3
Price Option
Product No. 610040
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 11mm
- FOV 144mm
- Magnification 0.076X
- Working Distance 324mm
- Max. sensor size 2/3
- F/# 5.3
- Distrotion ＜0.03%
- Telecentricity ＜0.03°
- DOV ±36.71mm
- MTF ＞30%@175lp/mm
- Illumination Port -
- Mount C-Mount
- Length 306.06mm
- Diameter 176.5mm
- Weight 5508g
| NO | Item | Specifications | |
| 1 | Optical Configuration | Double Telecentric | |
| 2 | Magnification | 0.076X | |
| 3 | Working Distance | 324mm | |
| 4 | DOV | ±36.71mm | |
| 5 | Telecentricity | ＜0.03° | |
| 6 | Distortion | ＜0.03% | |
| 7 | F/# | F5.3 | |
| 8 | Resolution/MTF @F5.3 | >30%@175lp/mm | |
| 9 | Max Object Space FOV | Φ11mm | |
| 10 | Max Image Space FOV | Φ144mm | |
| 11 | FOV （H×V） |
2/3" | 116×87mm |
| 1/1.8" | 95×71mm | ||
| 1/2.5" | 76.3×56.6mm | ||
| 12 | Lens Mount | C-Mount | |

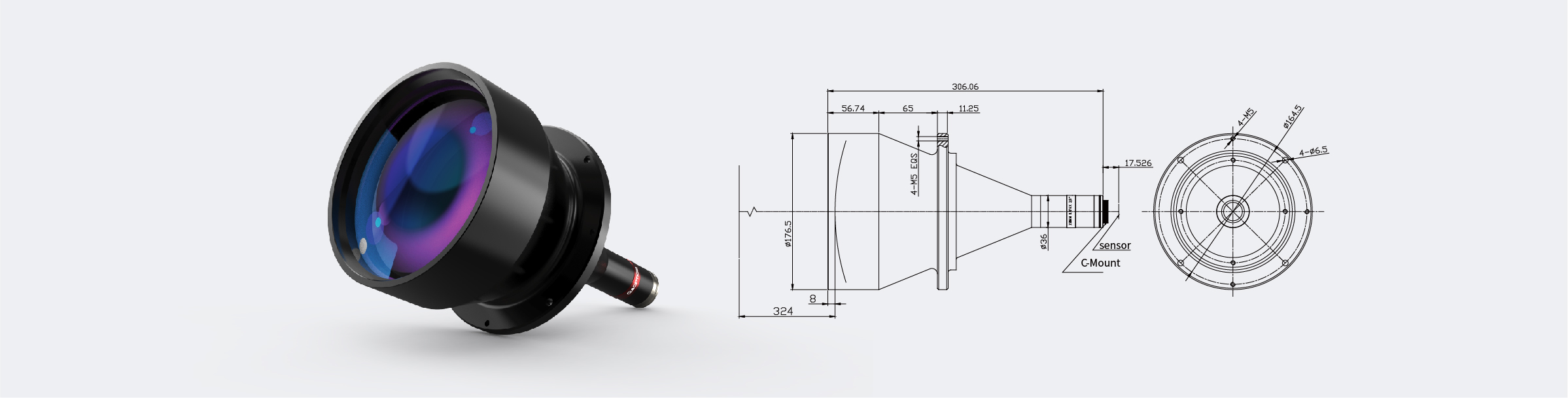

| 13 | Lens Size（Dia.×Length） | Φ176.5×306.06mm | |
| 14 | The distance from the front end of imaging lens to the first surface of the first glass lens | 8mm | |
GA Large FOV double telecentric lens’s fov can reach 250mm in object field of view, and its maximμm image size includes 1/1.8","2/3","1","4/3".
