0.5X Working Distance 110mm 2/3
Price Option
Product No. 610048
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Image Plane(Max) 11mm
- FOV 22mm
- Magnification 0.5X
- Working Distance 110mm
- Max. sensor size 2/3"
- F/# 8.5
- Distrotion ＜0.03%
- Telecentricity ＜0.1°
- DOV 3mm
- MTF ＞35%@110lp/mm
- Illumination Port -
- Mount C-Mount
- Length 130.8mm
- Diameter 35mm
- Weight /
| NO | Item | Specifications | |
| 1 | Optical Configuration | object space | |
| 2 | Magnification | 0.5X | |
| 3 | Working Distance | 110mm | |
| 4 | DOV | 3mm | |
| 5 | Telecentricity | ＜0.1° | |
| 6 | Distortion | ＜0.03% | |
| 7 | F/# | F8.5 | |
| 8 | ResolutionMTF | ＞35%@110lp/mm | |
| 9 | Max Sensor Size | 2/3"(Φ11mm) | |
| 10 | Max Object Space FOV | 22mm | |
| 11 | Max Image Space FOV | 11mm | |
| 12 | FOV（H×V） | 2/3" | 17.6mm×13.2mm |
| 13 | Lens Mount | C-Mount | |

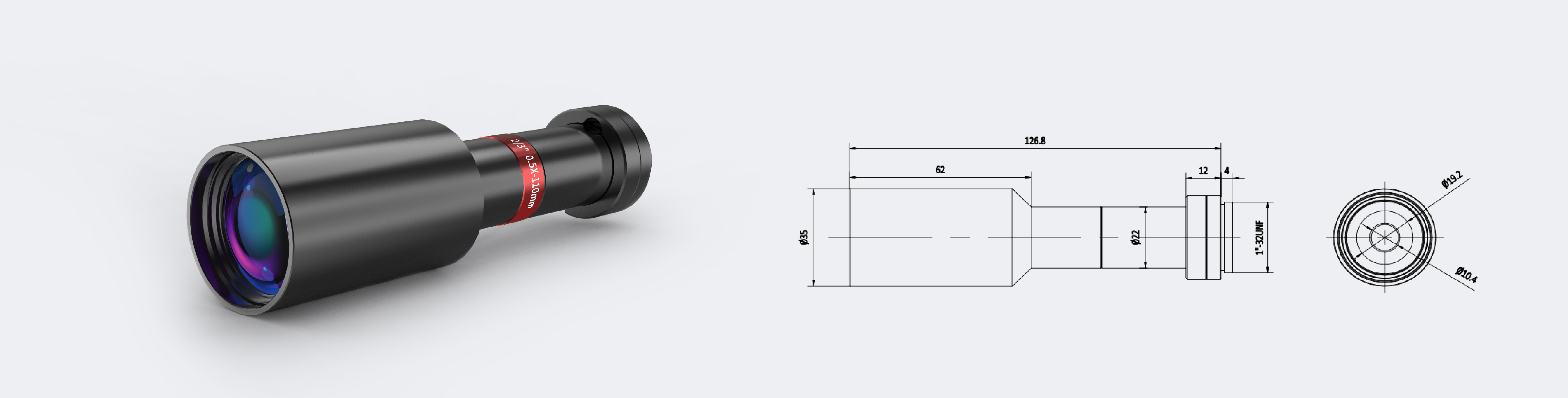

| 14 | Lens Size（Dia.×Length） | Φ35×130.8mm | |
The biggest characteristic of Object Telecentric Lens is that it can eliminate the influence of magnification change caused by inaccurate focusing.
