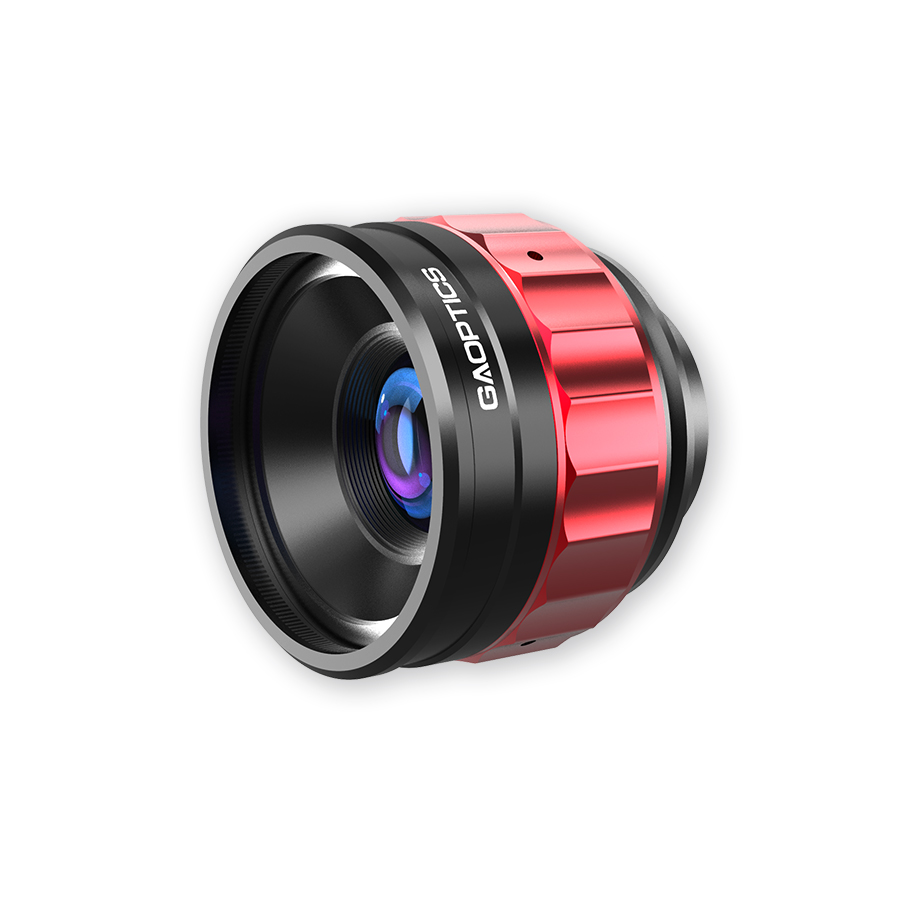

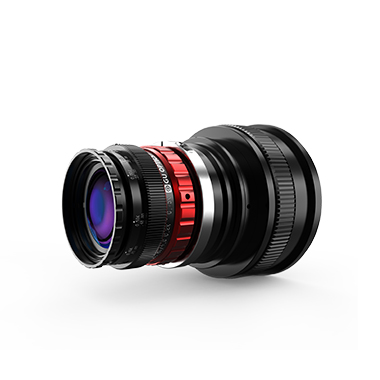

Focal Length 60mm 0.0x～1.0x Φ60mm V-mount Line Scan Lens
Price Option
Product No. 620100
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 60mm
- F/# F4.0-F22
- Max. sensor size 60mm
- Magnification 0.0x～1.0x
- Working Wavelength 400～1000nm
- Mount V-mount
- Weight 156g

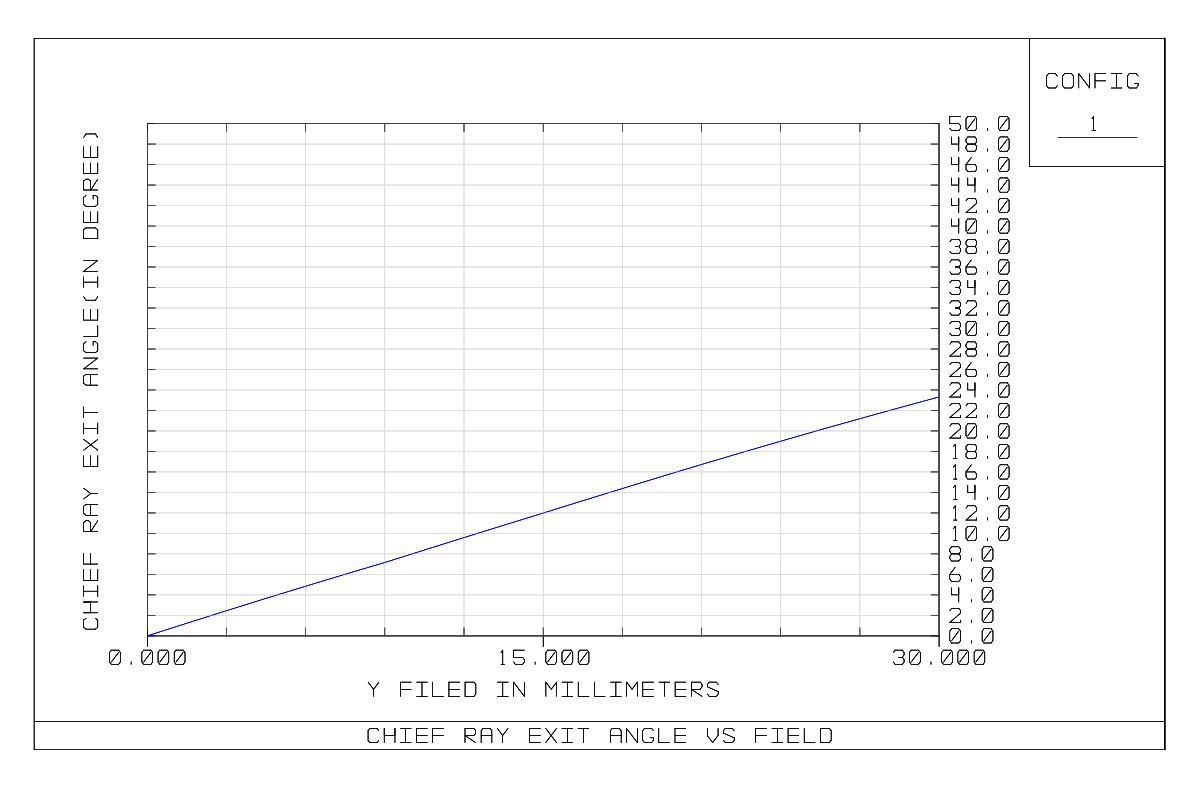

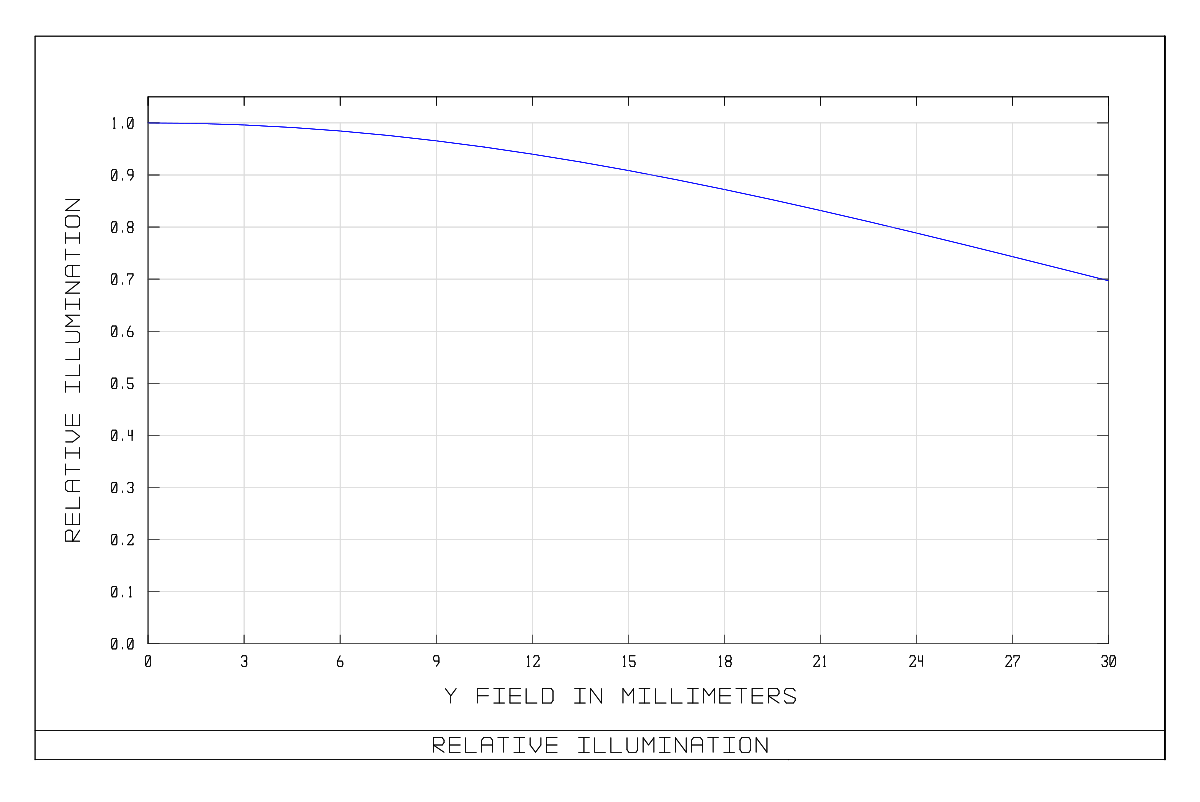

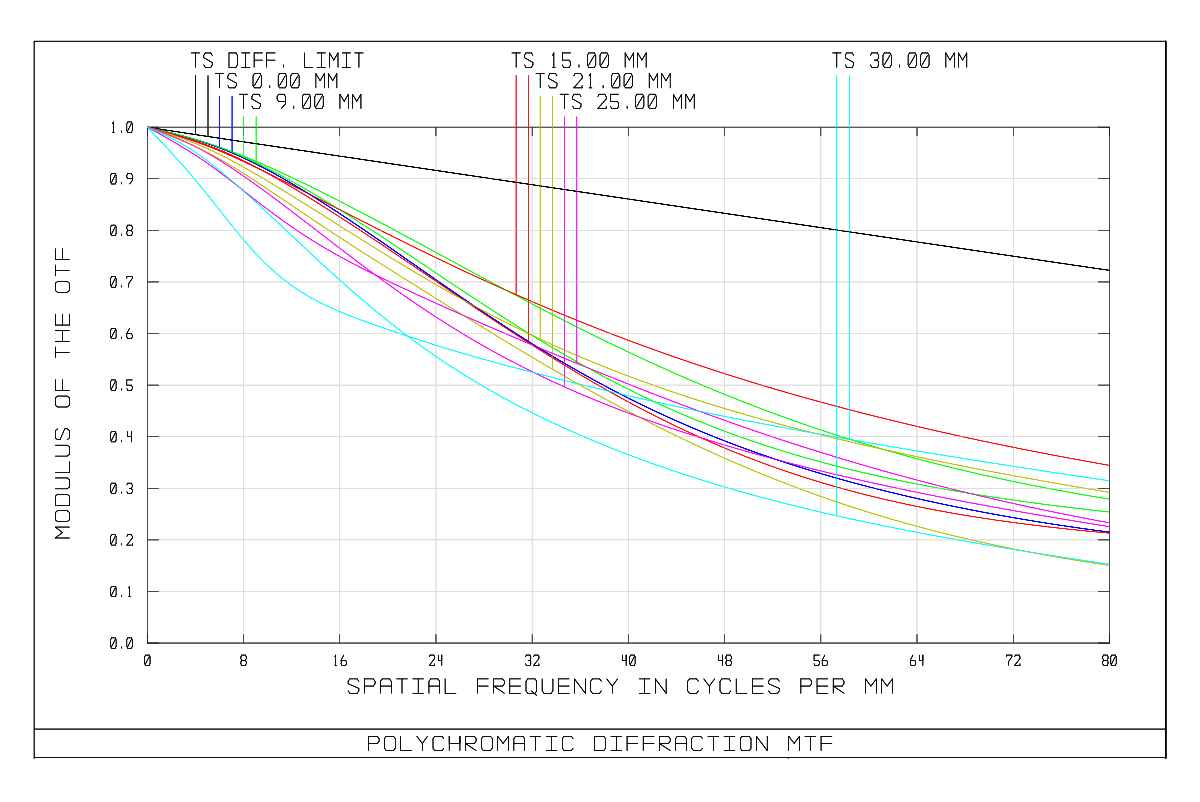

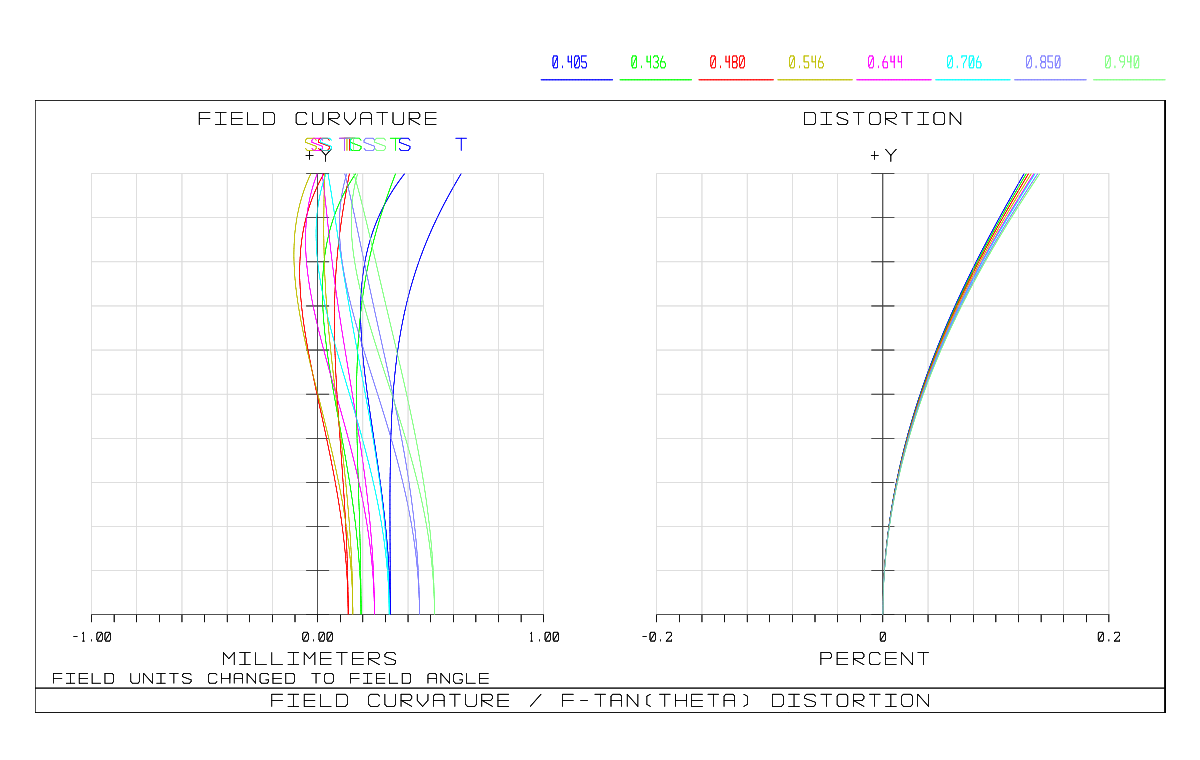

| No | Item | Specifications | ||||
| 1 | Max. sensor size | 60mm | ||||
| 2 | Focal Length | 60mm | ||||
| 3 | Mount | V-Mount | ||||
| 4 | F/# | F4.0-F22 | ||||
| 5 | Working Distance | 0.1m～∞ | ||||
| 6 | FOV | 8K7u/60mm | 53.48° | |||
| 8K5u/40mm | 37.26° | |||||
| 7 | Object Size (at the minimum focus distance) |
8K7u/60mm | 54.66mm | |||
| 8K5u/40mm | 36.4mm | |||||
| 8 | BFL（in air） | 39.97～105.18mm | ||||
| 9 | Operation | Focus | Manual | |||
| Aperture | M-Iris | |||||
| 10 | Distortion | 8K7u/60mm | -0.2/0.64%@y=30mm(0.1m/inf) | |||
| 8K5u/40mm | -0.09/0.28%@y=20mm(0.1m/inf) | |||||
| 11 | Filter thread | M39×0.5mm | ||||
| 12 | Lens Size(W x L) | 50.5×40.88mm | ||||
| 13 | Weight | 156g | ||||
| 14 | Work Temperature | -10℃～+50℃ | ||||
| 15 | Distance of entrance pupil | 24.22mm | ||||
| 16 | Diameter of entrance pupil | 14.37mm | ||||
| 17 | Distance of exit pupil | -58.99mm | ||||
| 18 | Diameter of exit pupil | 14.33mm | ||||
| 19 | Total optical length | 81.22mm(inf) | ||||
| 20 | Magnification | -1.104 | ||||
| 21 | First principal plane point | 23.69mm | ||||
| 22 | 2nd principal plane point | 21.7mm | ||||
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) | Optical BFL(mm) | M72 Adapter | M72 Extension |
| 100 mm | -1.10413 | 0.1165 | 0.1168 | 105.18 | 670204 | 670203(50mm)+670202(25mm)+670201(10mm) |
| 150 mm | -0.57189 | 0.2620 | 0.2630 | 73.73 | 670204 | 670203(50mm) |
| 200 mm | -0.38588 | 0.4656 | 0.4678 | 62.78 | 670204 | 670200(5mm)+670201(10mm)+670202(25mm) |
| 250 mm | -0.29117 | 0.7271 | 0.7313 | 57.209 | 670204 | 670201(10mm)+670202(25mm) |
| 300 mm | -0.23379 | 1.0463 | 1.0537 | 53.83 | 670204 | 670201(10mm)+670202(25mm) |
| 350 mm | -0.19531 | 1.4234 | 1.4350 | 51.56 | 670204 | 670200(5mm)+670202(25mm) |
| 400 mm | -0.1677 | 1.8580 | 1.8754 | 49.94 | 670204 | 670200(5mm)+670202(25mm) |
| 450 mm | -0.14693 | 2.3502 | 2.3750 | 48.71 | 670204 | 670202(25mm) |
| 500 mm | -0.13074 | 2.8998 | 2.9338 | 47.76 | 670204 | 670202(25mm) |
| 1231 mm | -0.05 | 17.4289 | 17.9368 | 42.98 | 670204 | 670201(10mm)+670201(10mm) |
GAOPTICS push out new series of V8K Line Scan Lens, they are specially designed for large format cameras, the maximum imaging sensors up 60mm, suitable for 8k7μ line scan cameras, compatible with 8k5μ line scan cameras; adopt V interface design, with a variety of magnification; Applicable to PCB, LCD, semiconductor inspection and other fields.
