Focal Length25mm   25.6mm 800-1800nm SWIR Lens

Focal Length25mm 25.6mm 800-1800nm SWIR Lens

Price Option

Product No. 680001

Stock In Stock

Express DHL, Fedex etc.

Product file downloadClick file to download
Focal Length 25mm
F/# 2.1
Max. sensor size 25.6mm
Mount C
Working Distance 200mm~∞
Working Wavelength 800-1800nm
FOV 54.52°
Distrotion <2.4%
Weight /
  No. Item Specifications
1 Max. Sensor size 25.6mm
2 Focal Length 25mm
3 Mount C-Mount
4 F/# F2.1-F22
5 Focusing Range 200mm~∞
6 FOV(Diagonal x H×V) 25.6mm 55.09°×45.15°×34.49°
4/3" 50.14°×40.90°×31.13°
1" 35.85°×28.94°×21.86°
1/2'' 18.26°×14.64°×11.0°
7 Object Size (at the minimum focus distance) 25.6mm 226.55mm
4/3" 234.66×187.73×140.80mm
1" 209.87×167.90×125.92mm
1/2'' 144.24×115.39×86.54mm
8 BFL(in air) /
9 Operation Focus Manual
Aperture M-Iris
10 Distortion 25.6mm  -1.66%@y=12.8mm
4/3"  -1.49%@y=11.5mm
1"  -0.92%@y=8mm
1/2''  -0.28%@y=4mm
11 Filter Thread M46X0.75
12 Working Wavelength 800~1800nm

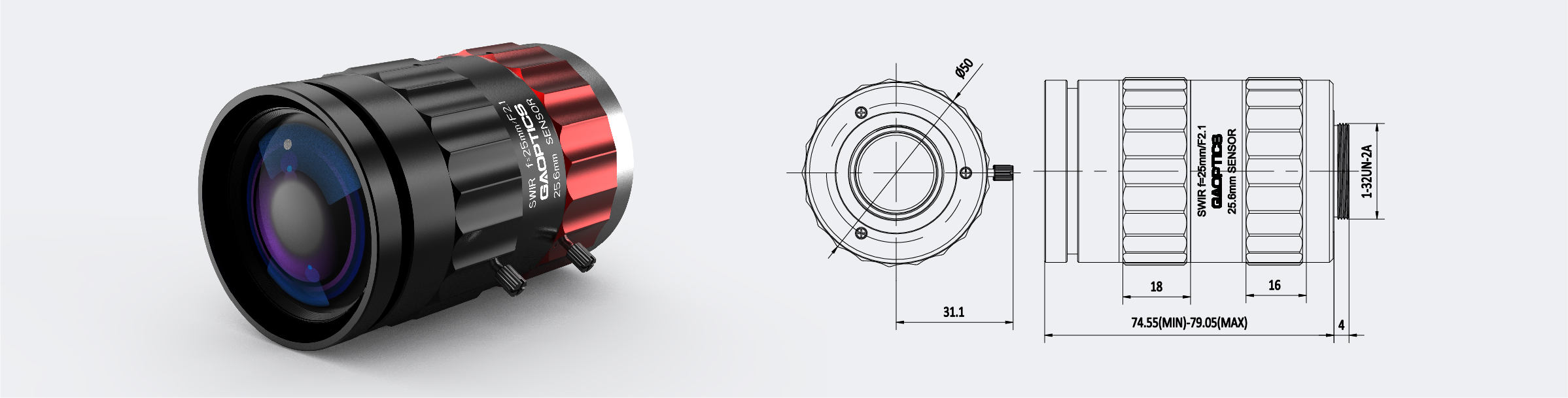

13 Lens Size(W x L) 56.1×83.05mm
14 Weight /
15 Work Temperature -10℃~+50℃

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
200mm 0.11268 2.98  3.07
250mm 0.09196 4.64  4.82
300mm 0.07768 6.65  6.96
350mm 0.06724 9.02  9.51
400mm 0.05927 11.74  12.47
450mm 0.05299 14.81  15.85
500mm 0.04791 18.21  19.64
550mm 0.04372 21.96  23.86
600mm 0.04021 26.04  28.51
650mm 0.03721 57.33  65.71
GA 25.6mm SWIR lens’s maximum imaging sensor is 25.6mm, working wavelength from 800 -1800nm.
