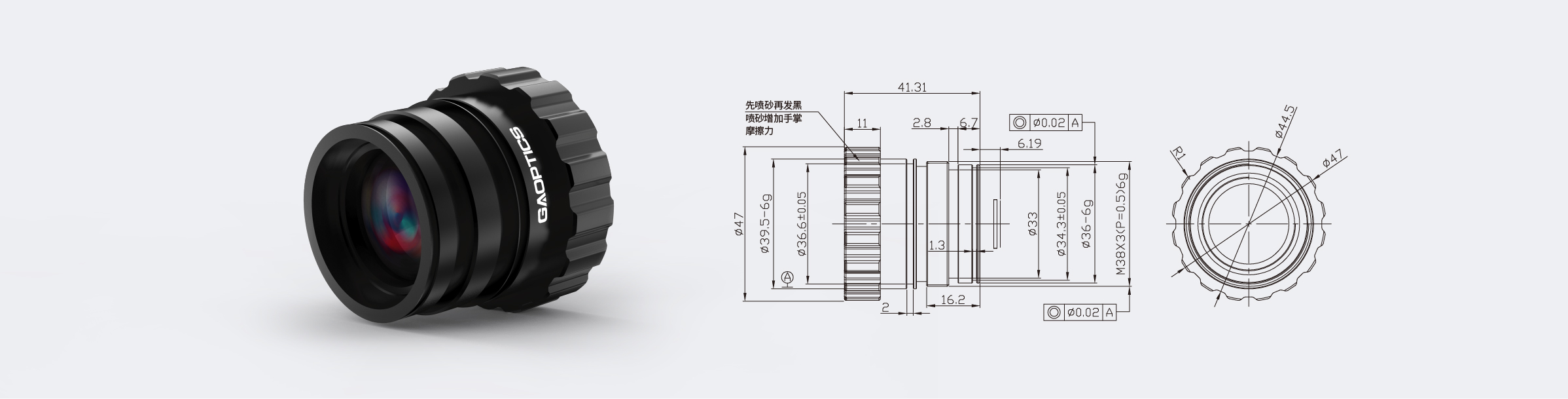

35mm Long Wavelength Infrared Lens
Price Option
Please Consult
Product No. 680203
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 35mm
- Resolution 640×512
- Pixel Size 17μm
- F/# 1.0
- FOV 17.67°×14.18°
- Working Wavelength 8～12μm
- Working Distance 5m～∞
- Weight ＜135g
| NO | Item | Specification |
| 1 | EFL | 35mm |
| 2 | Sensor | 640x512 17μm |
| 3 | FNo | 1 |
| 4 | FOV (HxV) | 17.67°x14.18° |
| 5 | Wavelength | 8-12μm |
| 6 | Transmittance | >88% |
| 7 | Front Lens Coating | HD |
| 8 | Focus | Fixed |
| 9 | Focus distance | 5m~∞ |
| 10 | Athermalizing | Optical athermalization |
| 11 | Sealing | IP67 |
| 12 | Operation Temperature | -40~80°C |
| 13 | Weight | <135g |
| 14 | Appearance Grade | 60-40 |
The main working wavelength of GA infrared lens is 8-12μm, which can be used with the mainstream infrared chips on the market. We can OEM different interfaces and different focus for customers
