Home  Products  VIS, NIR Infinity Corrected Long Working Distance Objectives  690008

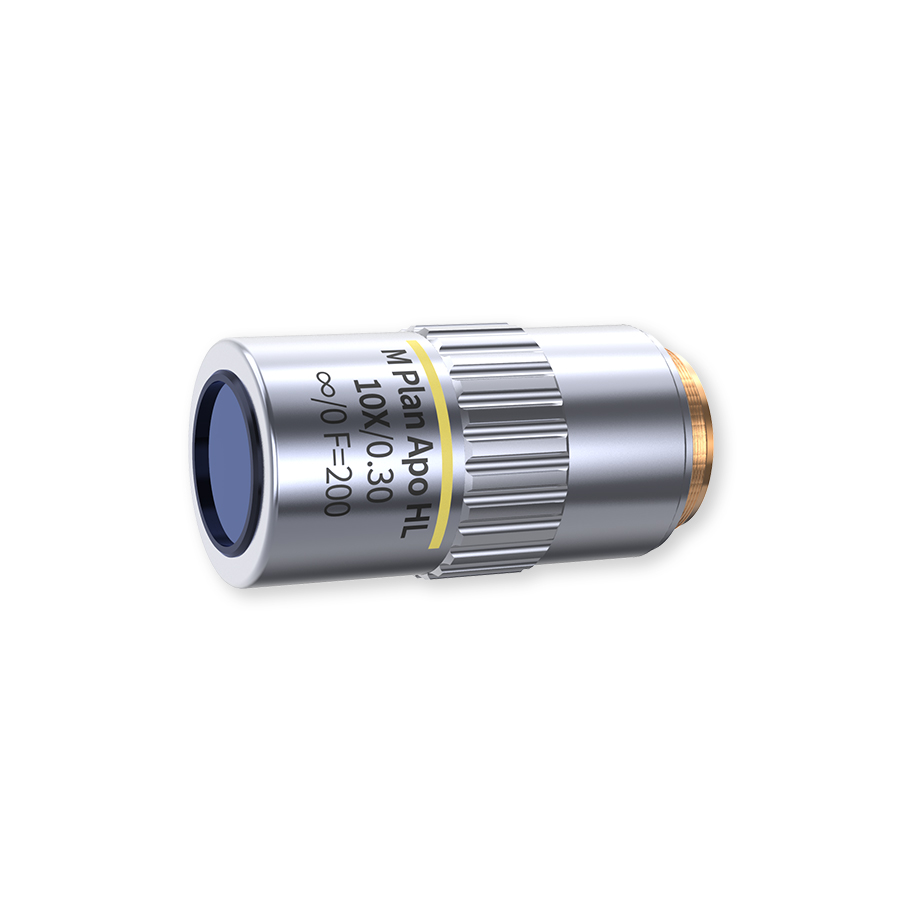

10X M PLAN APO VIS Infinity Corrected LWD Microscope Objective





Share

WeChat

Scan and add Wechat

10X M PLAN APO VIS Infinity Corrected LWD Microscope Objective

Price Option

Product No. 690008

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

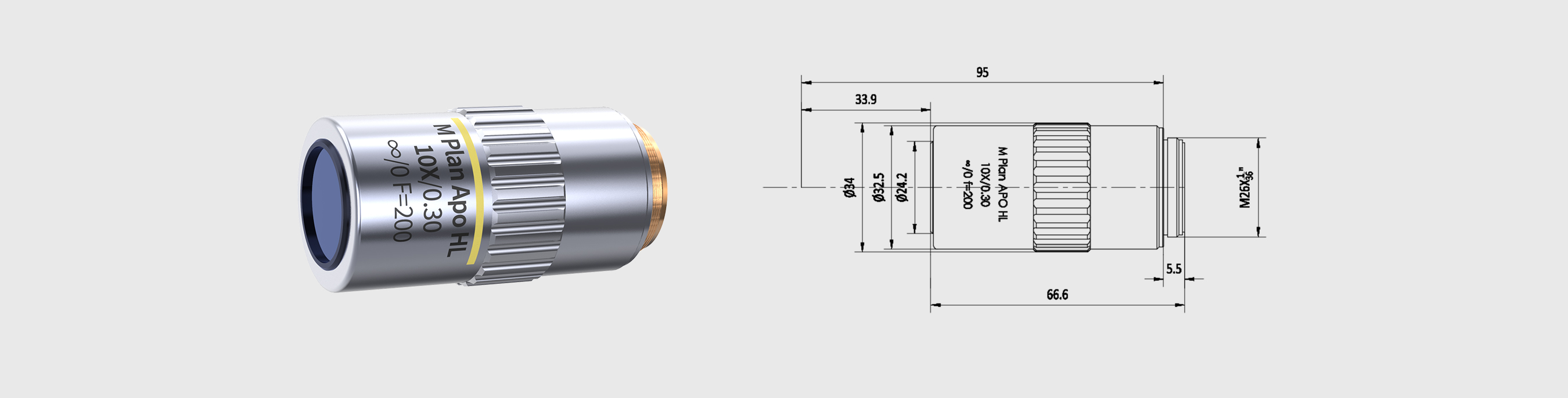

3D View CAD PDF Auto CAD DXF Solidworks eDrawing Step

Parameters Specification Data curve Related Products Description

Magnification 10X

NA 0.3

Working Distance 33.9mm

Focal Length 20mm

Wavelength VIS

Depth of Focus 3.5μm

Resolution 1μm

Focal Length of Tube Lens f200mm

OFN 25mm

Dia. 34mm

Length 66.6mm

Thread M26*0.706

Type M Plan APO

Curve Download
