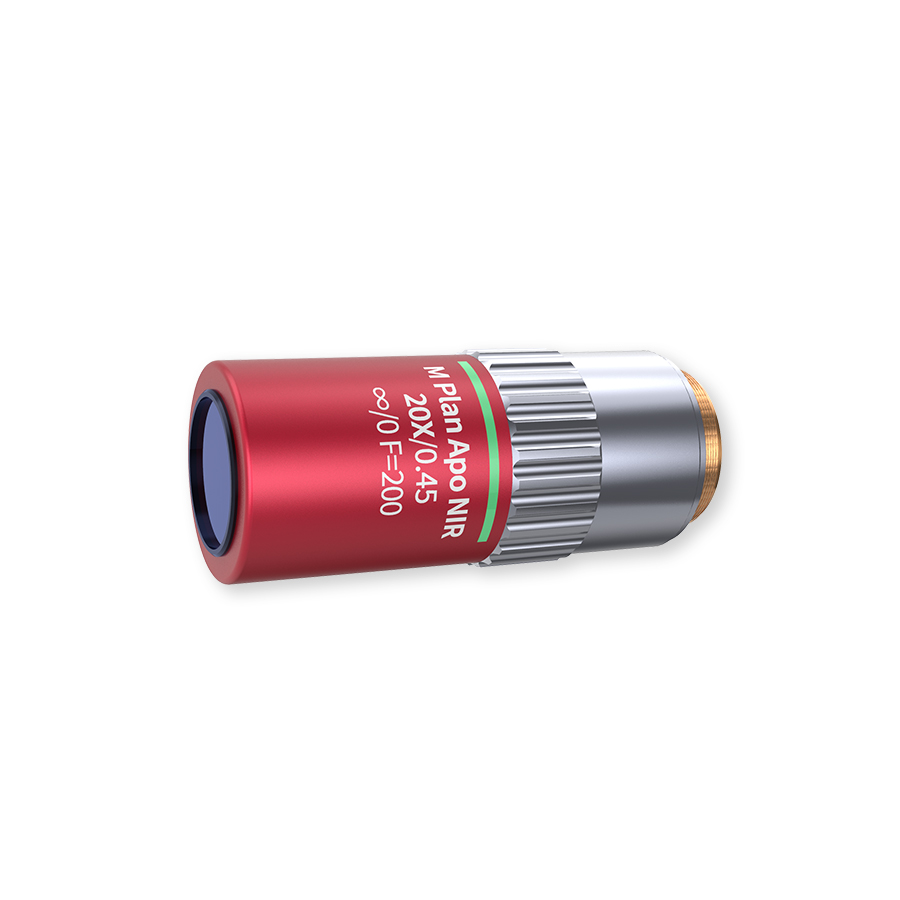

20X M PLAN APO NIR Infinity Corrected LWD Microscope Objective
Product No. 690015
Stock Please Consult
Express DHL, Fedex etc.
- Magnification 20X
- NA 0.45
- Working Distance 20.06mm
- Focal Length 10mm
- Wavelength NIR
- Depth of Focus 1.6μm
- Resolution 0.7μm
- Focal Length of Tube Lens f200mm
- OFN 25mm

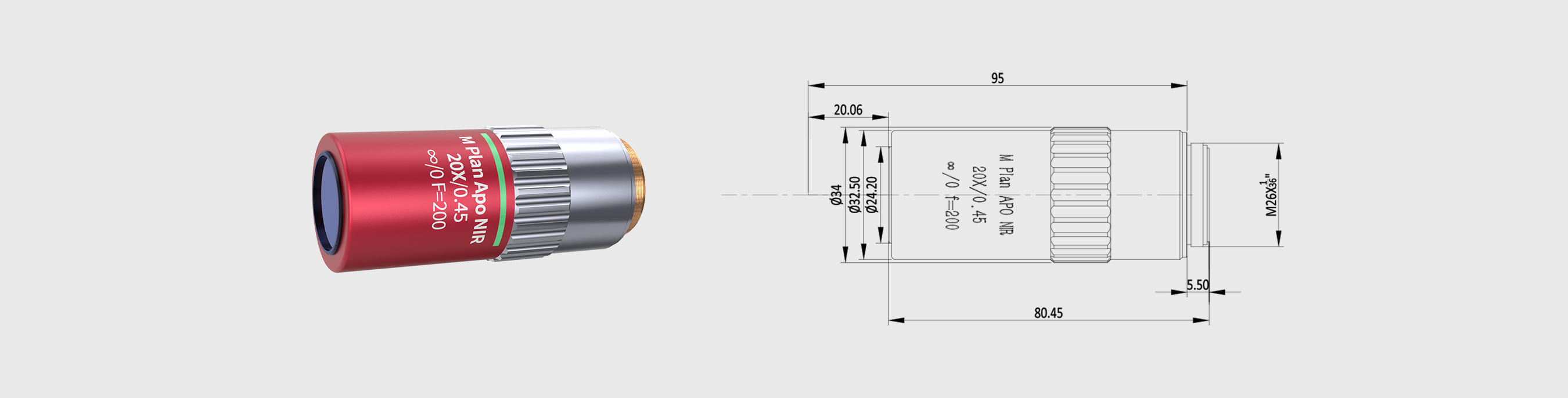

- Dia. 34mm
- Length 80.45mm
- Thread M26*0.706
- Type M Plan APO
