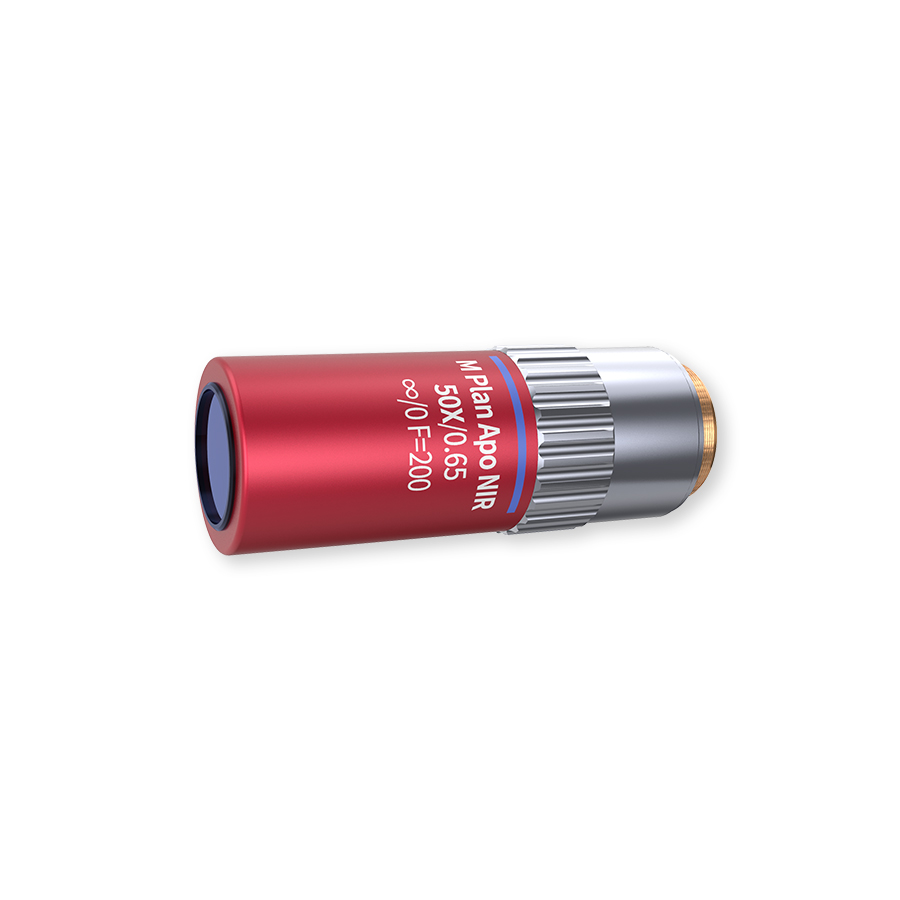

50X M PLAN APO NIR Infinity Corrected LWD Microscope Objective





Share

WeChat

Scan and add Wechat

50X M PLAN APO NIR Infinity Corrected LWD Microscope Objective

Price Option

Product No. 690016

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF Solidworks eDrawing Step

Parameters Specification Data curve Related Products Description

Magnification 50X

NA 0.65

Working Distance 9.4mm

Focal Length 4mm

Wavelength NIR

Depth of Focus 0.55μm

Resolution 0.4μm

Focal Length of Tube Lens f200mm

OFN 25mm

Dia. 34mm

Length 91.1mm

Thread M26*0.706

Type M Plan APO
