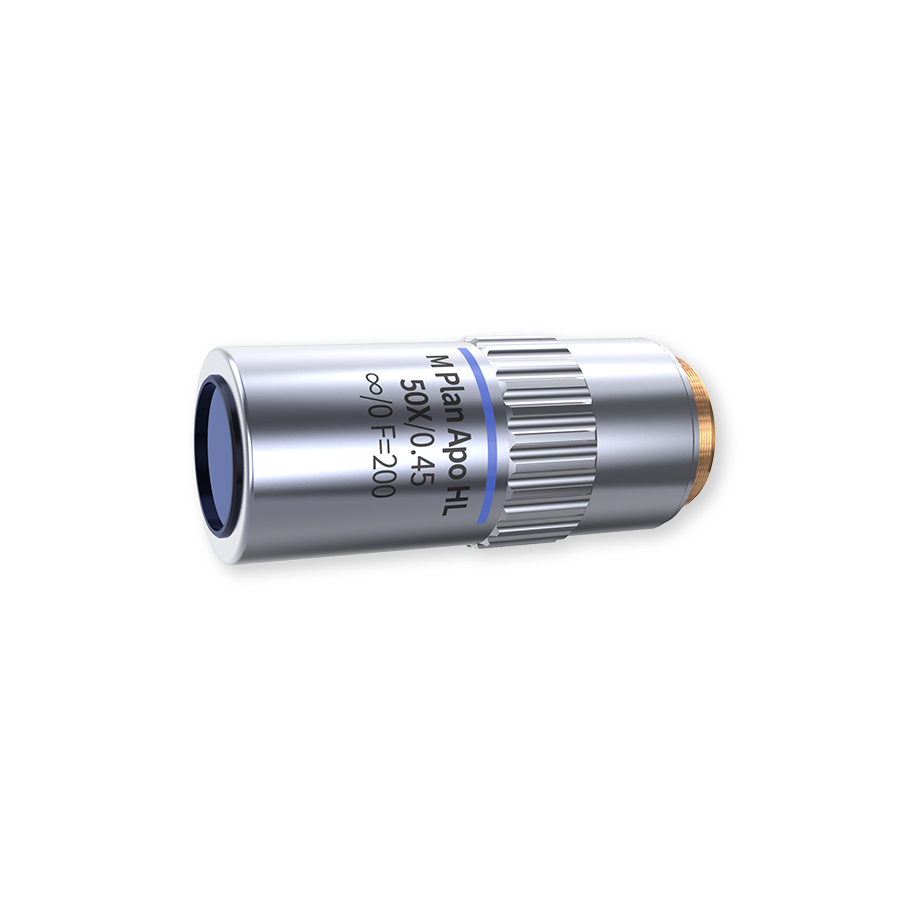

50X M PLAN APO VIS Infinity Corrected Ultra-Long Working Distances Objective





Share

WeChat

Scan and add Wechat

50X M PLAN APO VIS Infinity Corrected Ultra-Long Working Distances Objective

Price Option

Product No. 690019

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

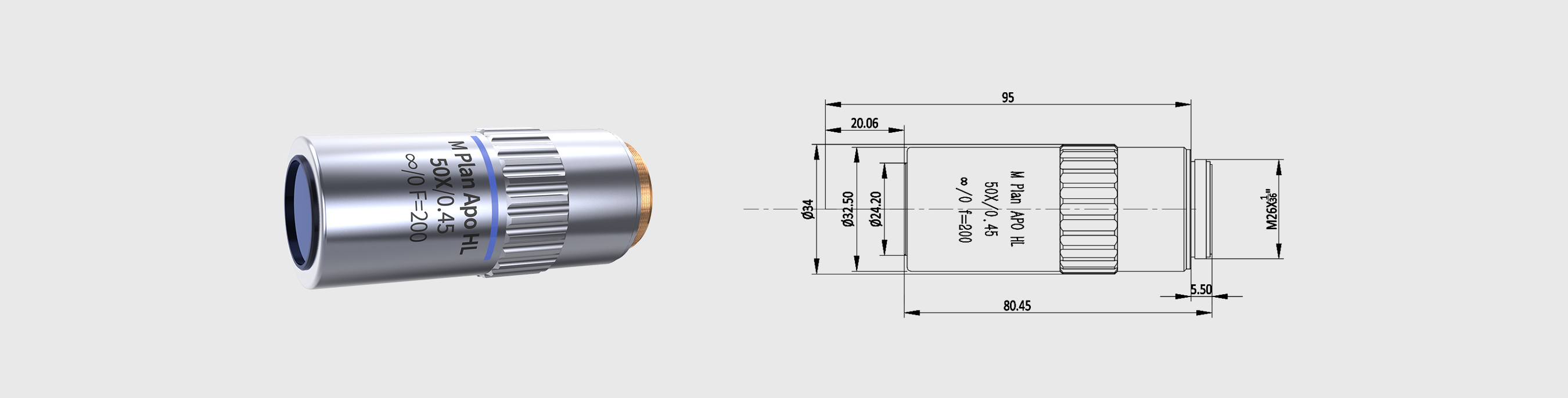

3D View CAD PDF Auto CAD DXF Solidworks eDrawing Step

Parameters Specification Data curve Related Products Description

Magnification 50X

NA 0.45

Working Distance 20.06mm

Focal Length 4mm

Wavelength VIS

Depth of Focus 1.6μm

Resolution 0.7μm

Focal Length of Tube Lens f200mm

OFN 25mm

Dia. 34mm

Length 80.45mm

Thread M26*0.706

Type M Plan APO
