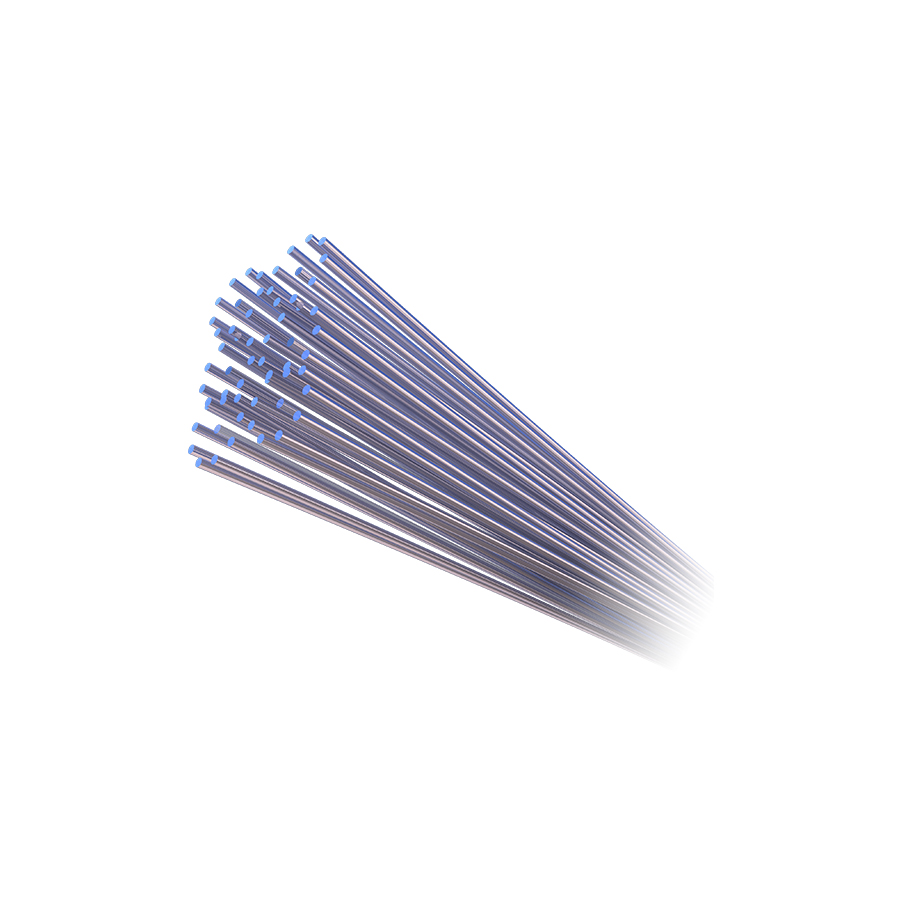

nufern Fiber
Price Option
Please Consult
Product No. 800000
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
| Parameters | Min | Max | Nom | Unit | Compliance | |
| Cladding Attenuation at 1095nm | 0 | 15 | dB/km | Measured | ||
| Core NA | 0.11 | 0.13 | 0.12 | Measured | ||
| Cladding NA (5%) | 0.46 | Design | ||||
| Core Diameter | 46 | 54 | 50 | µm | Measured | |
| Clad Diameter | 390 | 400 | 395 | µm | Measured | |
| Clad Non-Circularity | 0 | 0.5 | % | Measured | ||
| Coating Diameter | 535 | 565 | µm | Measured | ||
| Prooftest Level | 100 | 120 | kpsi | Measured | ||
| Operating Wavelength | 800 | 1600 | nm | Design | ||
