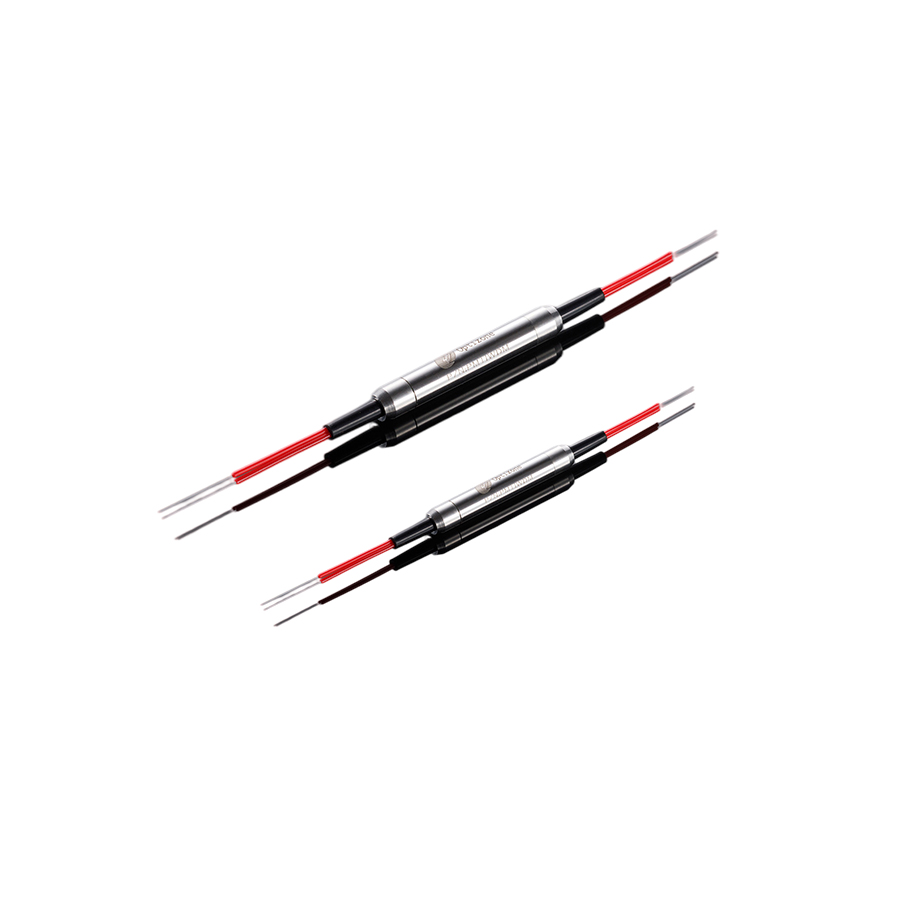

WDM
Price Option
Please Consult
Product No. 800002
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
| Parameters | Unit | Values | ||||||
| Center Wavelength | nm | 1490/1550 | 1480/1550 | 1480/1590 | ||||
| Operating Wavelength Range | nm | ±5 | ±5 | ±5 | ||||
| Min. Isolation | dB | 11 | 13 | 15 | ||||
| Max. Insertion Loss | dB | 0.55 | 0.4 | 0.4 | ||||
| Max. PDL | dB | 0.15 | 0.15 | 0.15 | ||||
| Min.Return Loss | dB | 50 | 50 | 50 | ||||
| Min.Directivity | dB | 50 | 50 | 50 | ||||
| Max. Optical Power (CW) | mW | 500 | ||||||
| Max. Tensile Load | N | 5 | ||||||
| Thermal Stability | dB/℃ | ≤ 0.002 over -5 °C to +70 °C | ||||||
| Operating Temperature | °C | -5 to +70 | ||||||
| Storage Temperature | °C | -40 to +85 | ||||||
| Fiber Type | SMF-28e fiber | |||||||
| Package Dimensions | mm | 250um Bare Fiber Ø3.0X55 | ||||||
| 900um Loose Tube Ø3.0X75 | ||||||||
| 3mm Loose Cable 90X16X9 | ||||||||
