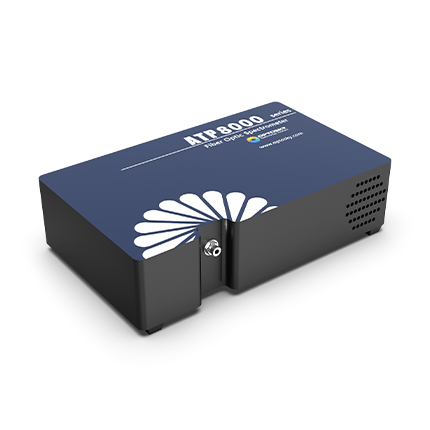

NIR Spectrometer ATP8000
Price Option
Please Consult
Product No. 780306
Stock In Stock | 2-4周
Express DHL, Fedex etc.
Files Click file to download
- 光谱范围 900-2600nm
- 光学分辨率 5-50 nm
- 光路结构 f/4 交叉非对称 C-T 光路
- 检测器 256/512 像素 InGaAs 探测器
- 积分时间 7.8ms - 256s
- 供电电源 直流 5V@<3A
- ADC位深 18 位
- 光输入接口 SM905 光纤接口或自由空间输入
- 数据输出接口 USB2.0 和UART
- 扩展接口 20 针扩展接口
Description
·ATP8000-5-26 is self-developed by Optosky to replace NIR Quest features competing performance cost less, 900-2600nm NIR, Near Infrared spectrometer with 512 pixels, InGaAs cooled down to -20ºC, resulting in low noise, 2 times higher SNR, better reliability, measuring results do not change with ambient temperatures.
·Allow for custom or preconfigured wavelength range, resolution by changing grating lines or slit size. Three common standard maxium wavelength are ATP8000-5-17 900-1700 nm, ATP8000-5-21 900-2100 nm , ATP8000-5-26 900-2600 nm.
·Crossed C-T optical bench design the higher sensitivity improve measure accuracy and detect tiny change spectrum, the optimized optical resolution level is superior for NIR spectrometer manufacturing.
·1064 NIR Raman spectrometer 200-2600 cm-1 , InGaAs detector cooled down to -20 degree , custom configuration receive the the highest technology innovation in the world.
Specification
·ATP8000-5-26 is self-developed by Optosky to replace NIR Quest features competing performance cost less, 900-2600nm NIR, Near Infrared spectrometer with 512 pixels, InGaAs cooled down to -20ºC, resulting in low noise, 2 times higher SNR, better reliability, measuring results do not change with ambient temperatures.
·Allow for custom or preconfigured wavelength range, resolution by changing grating lines or slit size. Three common standard maxium wavelength are ATP8000-5-17 900-1700 nm, ATP8000-5-21 900-2100 nm , ATP8000-5-26 900-2600 nm.
·Crossed C-T optical bench design the higher sensitivity improve measure accuracy and detect tiny change spectrum, the optimized optical resolution level is superior for NIR spectrometer manufacturing.
·1064 NIR Raman spectrometer 200-2600 cm-1 , InGaAs detector cooled down to -20 degree , custom configuration receive the the highest technology innovation in the world.
Specification
| DETECTOR | |
| Detector Type | Cooled InGaAs Array CCD，Cooled down to-20ºC |
| Spectral Range | 900-1700 nm、900-2100nm、900-2500 nm |
| Effective Pixels | 256/512 |
| Pixel Size | 50/25μm×500μm |
| Full Well Capacity | ~187.5 Me- |
| Dynamic Range | 16666 |
| Sensitivity | 16 nV/ e- |
| Peak | 2300 nm |
| Dark Noise | 180 μV rms |
| OPTICAL PARAMETER | |
| Wavelength Range | 900-2600nm，are optional，Other sizes can be customized |
| Spectral Range | 5-50 nm （Slit size & spectral range） |
| Dynamic Range | >10000:1 |
| Dynamic Range | 16666 |
| Working Temperature | 0-40 oC |
| Working Humidity | < 90%RH |
| Optical Path Parameters | |
| Optical Design | F/4 Crossed C-T |
| Focal Distance | 82.3 mm for incidence / 121.5 mm for output |
| Slit Size | 5、10、25、50、100、150、200 μm are optional，Other sizes can be customized |
| Optical light input | SM905 or free space |
| ELECTRICAL PARAMETER | |
| Integration Time | 7.8ms-256s |
| Data output | USB 2.0 |
| ADC Depth | 18 bit (output 16bit) |
| Power Supply | 5VDC±5% |
| Operating Current | <3A |
| Storage Temperature | -20°C to +70°C |
| Operating Temperature | -10°C to +50°C |
| Working Humidity | 风冷 |
| PHYSICAL PARAMETERS | |
| Dimensions | 215×130×52.3mm |
| Weight | 1.8 kg |
