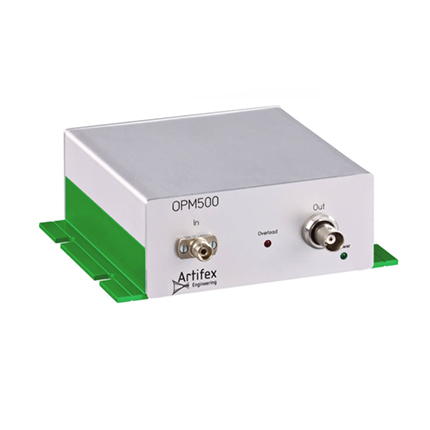

OPM 500 功率计
Price Option
Please Consult
Product No. OPM-500
Stock In Stock | 6-8 weeks
Express DHL, Fedex etc.
Files Click file to download
- 探测头 光纤头
- USB端口 是
- 输出 数字信号和模拟信号
- 功率范围 pW-mW
| 参数 | Si, InGaAs | Ge | 单位 | ||
| 输入 | 波长范围 | extended InGaAs | 950 – 2100 | 800-1500 | nm |
| InGaAs | 800 – 1650 | ||||
| visible enhanced InGaAs | 400 – 1600 | ||||
| UV-Si | 190 – 950 | ||||
| 功率范围 | + 5 0 – 10 – 20 – 30 – 40 |
+ 15 + 10 0 – 10 – 20 – 30 |
dBm | ||
| 噪声等效功率(NEPRMS ) | Range 1-5 Range 6 |
full scale – 45 (max) – 75 (max) |
full scale – 32 (max) – 62 (max) |
dB dBm |
|
| 偏振相关损耗 (PDL) | 0.02 – 0.1 | 0.02 – 0.1 | dB | ||
| 光纤类型 | 单模, 多模 (core Φ ≤ 62.5 μm; NA ≤ 0.275) |
单模, 多模 (core Φ ≤ 62.5 μm; NA ≤ 0.275) |
|||
| 接口 | FC, SMA, free beam | FC, SMA, free beam | |||
| 输出 | 功能 | Linear analogue : Vout = scale factor x Pin | Linear analogue : Vout = scale factor x Pin | ||
| 输出规模 | Range 1 Range 2 Range 3 Range 4 Range 5 Range 6 |
1 10 100 1 10 100 |
0,1 1 10 0,1 1 10 |
V/mW V/mW V/mW V/µW V/µW V/µW |
|
| 输出范围 | 10 (max) | 10 (max) | V | ||
| 连接器 | BNC和DB25（适用于其他连接器系统的适配器） | BNC和DB25（适用于其他连接器系统的适配器） | |||
| 上升/下降时间（10％– 90％） | Small signal (-1 → +1V) Large signal (-10 → +10V) |
45 (max) 65 (max) |
45 (max) 65 (max) |
ns | |
| 准确性 | ± 5 (min) | ± 5 (min) | % | ||
| 重复性 | ± 0.5 (min) | ± 0.5 (min) | % | ||
| 线性度 | ± 0.1 (typ) ± 0.2 (max) |
± 0.1 (typ) ± 0.2 (max) |
dB | ||
| 输出阻抗 | BNC-Output DB25-Output |
50 0 |
50 0 |
Ω | |
| 尺寸 | 105 x 45 x 116 (B x H x L) | 105x 45 x 116 (B x H x L) | mm | ||
