Flat Mirror 50.0x50.0mm AU+Protected H-K9L optical glass

Flat Mirror 50.0x50.0mm AU+Protected H-K9L optical glass

Price Option

Product No. 260129

Stock In Stock

Express DHL, Fedex etc.

Product file downloadClick file to download

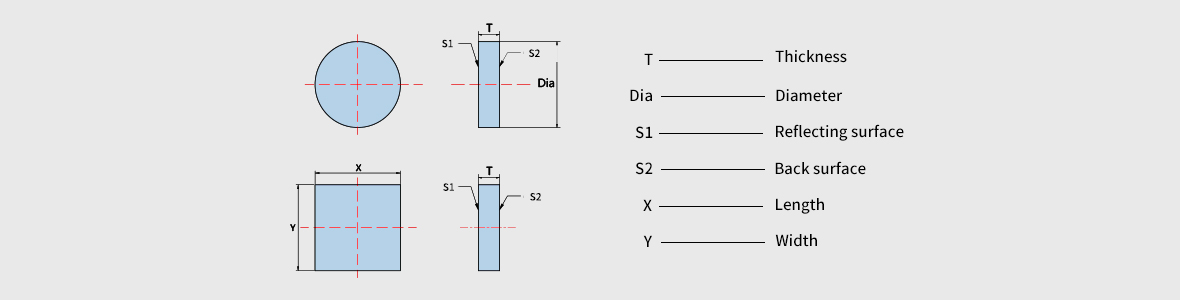

Dia 50.0x50.0mm
Thickness 10.0mm

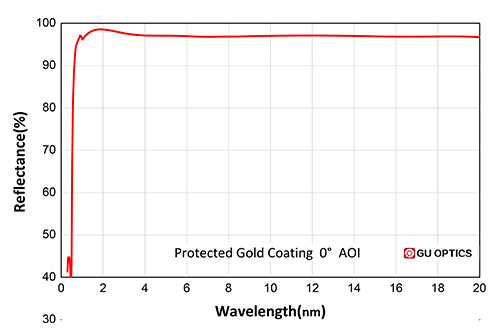

Coating Gold+Protected
Material H-K9L optical glass
Surface Accuracy λ/10 @ 633 nm
Parallelism <3arcmin
Surface Quality 10-5
Back Surface Polish
Diameter Tolerance +0.0/-0.1mm
Thickness Tolerance ±0.2mm
Bevel Protective Bevel 0.2~0.5mmX45°
Flat Mirrors are designed for the variety of applications, including beam steering or folding, interferometry, or as optical components in imaging systems. High surface accuracy can decrease the amount of light lost through dispersion. Image Optics offers uncoated and coated mirrors for your applications.
