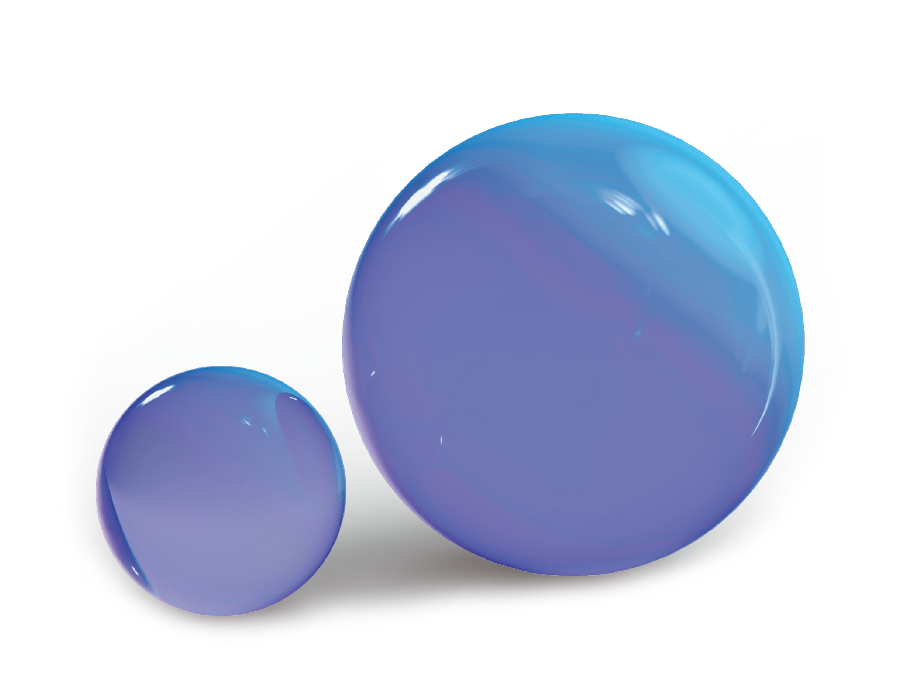

H-K9L Ball Lenses
Ball lenses are commonly used to improve signal quality and coupling efficiencey between an optical fiber emitter and optical fiber detector, which is used in endoscopy, bar code scanning, pre-processing material of Aspheric Lens etc. The short back focal length can be used to reduce the necessary distance from the ball lens to the optical fiber
- Material H-K9L Optical Glass
- Design Wavelength @587.6nm
- Diameter Tolerance +/- 0.005mm
- Ellipsoid ±0.003mm
- Irregularity (P-V) λ/4 @632.8nm
- Surface Quality 40-20
- Coating Uncoated
Coating
Material
Pro No.
Parameter
Dia
EFL
Coating
Material
Delivery time
Compare
Price
Purchase
