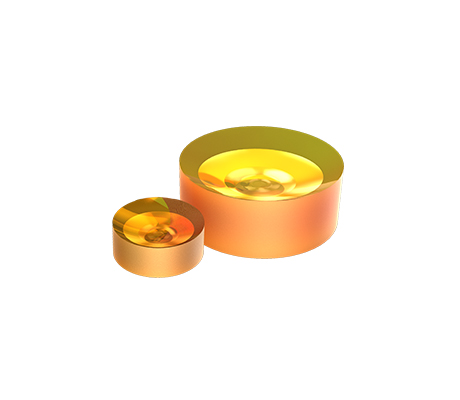

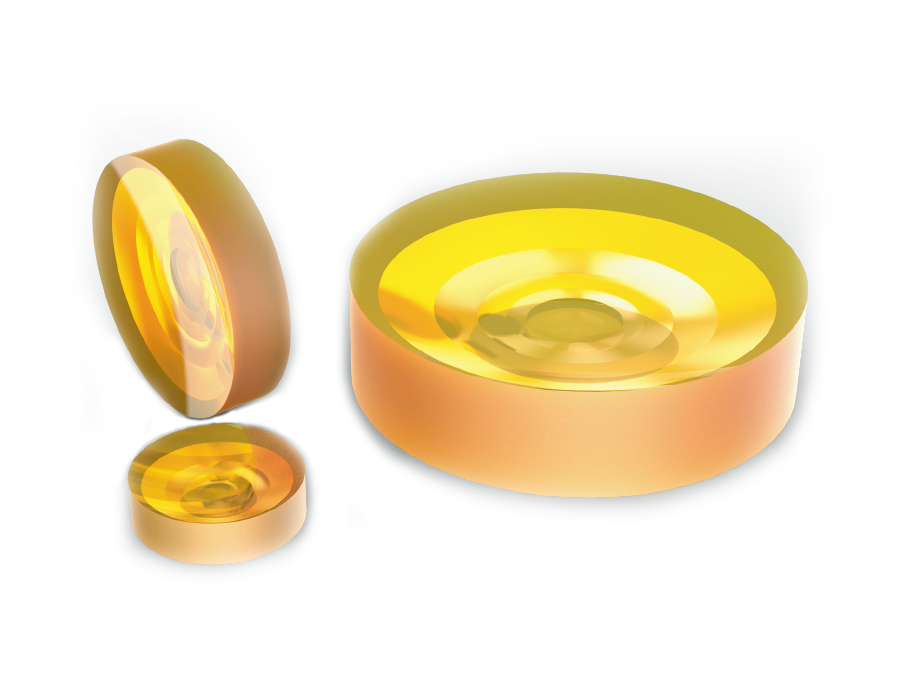

Zinc Selenide (ZnSe) Double-Concave (DCV) Lenses
Double-Concave Lenses can diverge the light, its focal length is nedtive, which is made of two concave surfaces with same radius.These lenses are ideal for the application of beam expansion, light projection or the expansion of the focal length. Grand Unified Optics offers uncoated or AR coatings Double-Concave Lenses for your appliation.
- Material （ZnSe）CVD Laser Grade（ZnSe）
- Design Wavelength 10.6μm
- Diameter Tolerance +0.0/-0.1mm
- Center Thickness Tolerance ±0.2mm
- Focal Length Tolerance（EFL） ±1%
- Centering Tolerance ＜3 arcmin
- Surface Quality 40-20
- Bevel 0.2mmX45°
- Coating As product list
Dia
Material
Pro No.
Parameter
Dia
EFL
Coating
Material
Delivery time
Compare
Price
Purchase
25.40mm
-25.40mm

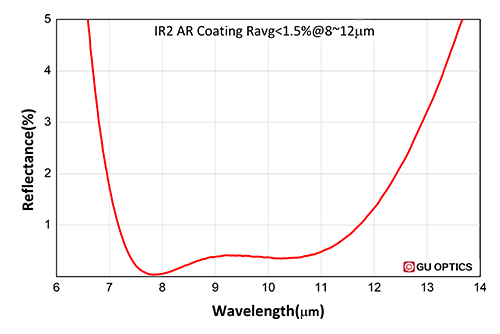

Double Sided AR coating @8~12μm
CVD Laser Grade ZnSe（ZnSe）
In stock
$258.33
25.40mm
-50.00mm
Double Sided AR coating @8~12μm
CVD Laser Grade ZnSe（ZnSe）
In stock
$258.33
25.40mm
-75.00mm
Double Sided AR coating @8~12μm
CVD Laser Grade ZnSe（ZnSe）
In stock
$258.33
25.40mm
-100.00mm
Double Sided AR coating @8~12μm
CVD Laser Grade ZnSe（ZnSe）
In stock
$258.33
25.40mm
-200.00mm
Double Sided AR coating @8~12μm
CVD Laser Grade ZnSe（ZnSe）
In stock
$258.33
