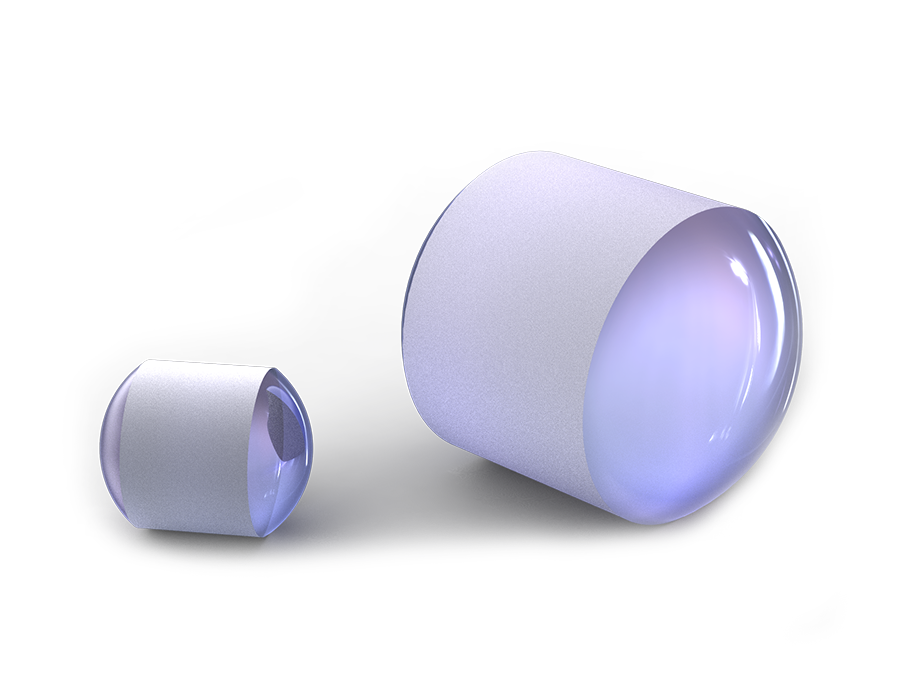

UV Fused Silica Drum Lenses
Drum lenses are spherical at both ends, which can provide a position surface along the optical axis. Ball lenses are formed by grinding an outer circle on a ball lens in order to mount conveniently. These are ideal for optical transmission in fiber communication applications
UV Fused Silica Drum Lenses
Material UV Fused Silica
Design Wavelength 587.6nm
Diameter Tolerance +0.0/- 0.05mm
Center Thickness Tolerance(L) ±0.005mm
  Irregularity (P-V) λ/4 @632.8nm
Surface Quality 20-10
Coating As product list
Pro No.
Parameter
Dia
EFL
Coating
Material
Delivery time
Compare
Price
Purchase
2.00mm
1.99mm
Uncoated
UV Fused Silica
In stock
$39.17
2.00mm
2.39mm
Uncoated
UV Fused Silica
In stock
$39.17
3.00mm
3.18mm
Uncoated
UV Fused Silica
In stock
$42.50
4.00mm
3.98mm
Uncoated
UV Fused Silica
In stock
$45.83
5.00mm
6.36mm
Uncoated
UV Fused Silica
In stock
$52.50
2.00mm
1.99mm
AR@250~400nm
UV Fused Silica
In stock
$47.50
2.00mm
2.39mm
AR@250~400nm
UV Fused Silica
In stock
$47.50
3.00mm
3.18mm
AR@250~400nm
UV Fused Silica
In stock
$50.83
4.00mm
3.98mm
AR@250~400nm
UV Fused Silica
In stock
$54.17
5.00mm
6.36mm
AR@250~400nm
UV Fused Silica
In stock
$60.83

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:

This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
