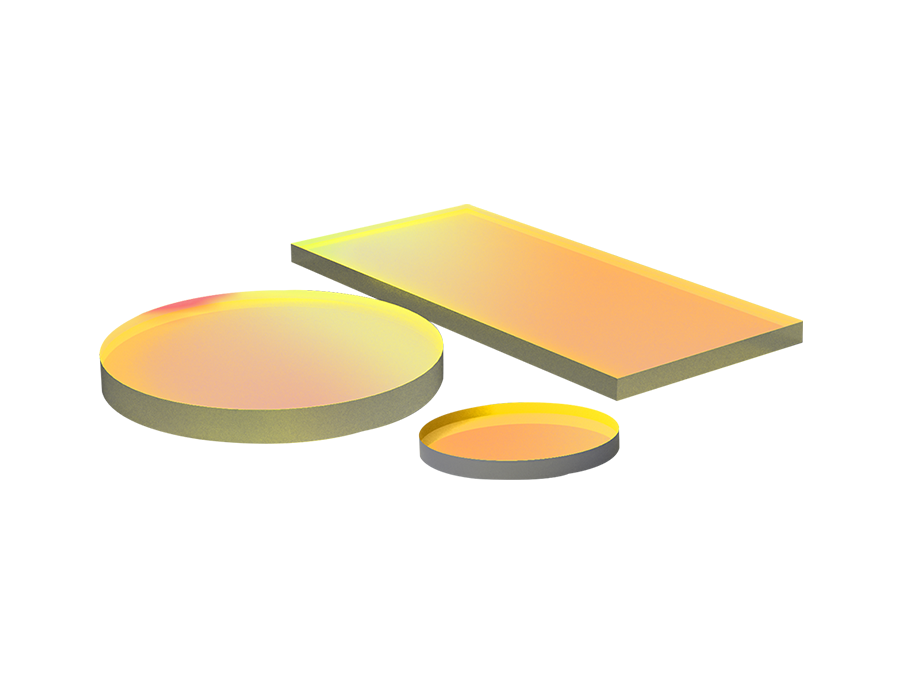

High Performance Hot Mirror
Different from absorptive heat-resistant glass filter, there is little absorption of heat energy with dielectric hot mirrors. Hot mirrors can therefore be applied to various high power illumination applications as the VIS wavelengths will pass and the NIR which may affect application of the system will be blocked or reflected. Hot mirrors can also be used as infrared cut-off filters due to the coating design. Hot mirrors can be suited to various applications of spectral detection, including blocking the interference of NIR light to CCD, silicon detector etc.
High Performance Hot Mirror
Material Borosilicate glass BorofloatTM
Surface Accuracy <5λ/25mm2 @633nm
Parallelism <1 arcmin
Surface Quality 60-40
Diameter Tolerance of Circular Substrate +0.0/-0.25mm
Tolerance of Square (rectangular) substrate ±0.25mm (Edge Cutting)
Thickness Tolerance 0.2mm
Transmission Tavg>90% @425~675nm
Reflection Ravg>95% @750~1150nm
Angle of Incidence
Pro No.
Parameter
Dia
Angle of Incidence
Parallelism
Material
Delivery time
Compare
Price
Purchase
Φ12.5x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$20.83
12.5x12.5x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$20.83
Φ25.0x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$29.17
25x25x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$29.17
35x35x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$32.50
Φ50.0x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$50.83
50x50x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$50.83
80x80x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$75.00
110x120x1.1mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$112.50
Φ12.5x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$20.83
12.5x12.5x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$20.83
Φ25.0x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$29.17
25x25x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$29.17
35x35x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$32.50
Φ50.0x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$50.83
50x50x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$50.83
80x80x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$75.00
110x120x2mm
<1arcmin
Borosilicate glass BorofloatTM
In stock
$112.50
