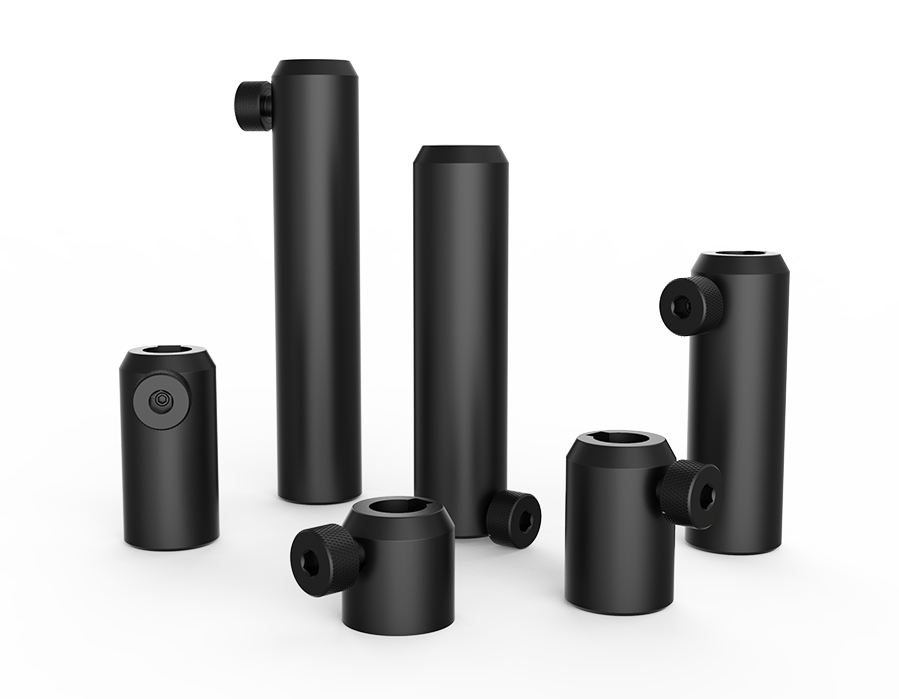

Mounting Post Holders
Product characteristics
1. With a M6 threaded holes on the bottom , which can be easily fixed on various bases, optical tables and breadboards. All the post holder are equipped with a screw knob to fix the mounting post.
2. All support holders are equipped with a positioning spring steel ball and screw knob to fix the post firmly.
3. From the top to the bottom of the square groove design, when the screw knob is fixed, this forms three coplanar points for stability.
4. Various lengths of post holder can be matched with different heights of post, allowing the required height in various applications.
5. Recommended maximum screw strength 30kgf-cm.
6. Can be used with Pedestal Clamping Fork 523600 and Pedestal 523750 .
7. Internal diameter 12.7mm.
8. 6 different heights are available,height from 25.4mm~152.4mm.
9. It is not advised to use L-type Hex Keys to tighten the locking screw in case of overtightening damage.
Dia
Pro No.
Parameter
L
Dia
Weight
Delivery time
Compare
Price
Purchase
