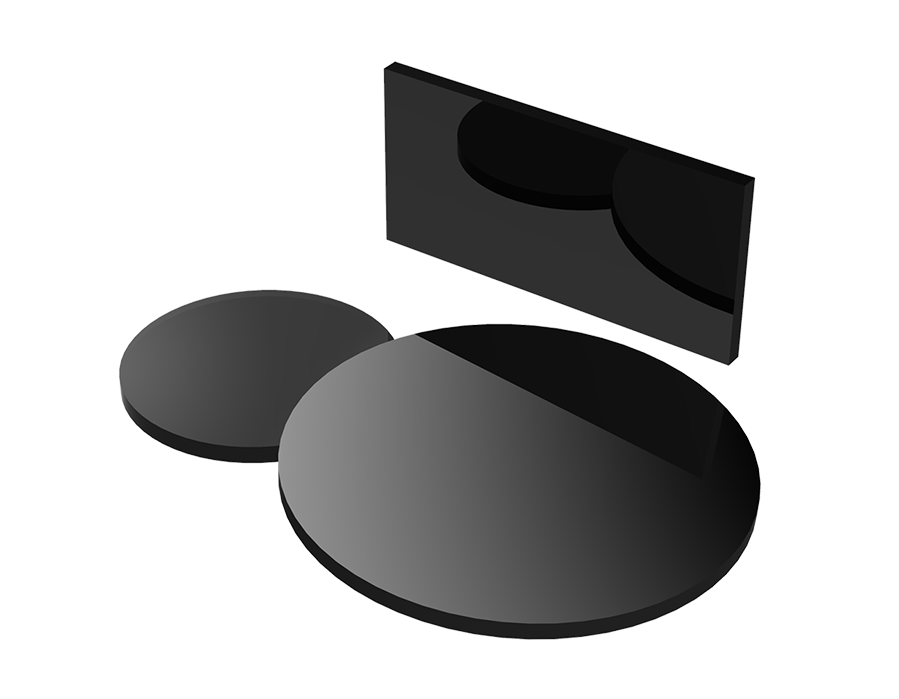

VIS Metal coated Neutral Density Filter

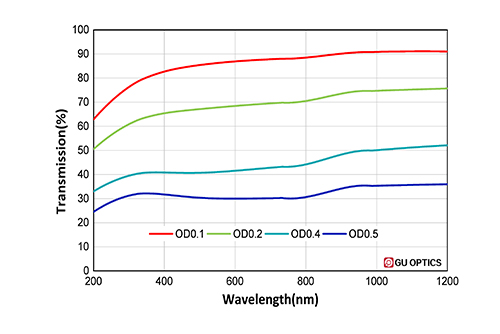

These filters provide a very flat spectral response for applications ranging from VIS to NIR due to its substrate characteristics. They are widely used in spectral measurement, imaging optical system, machine vision system and optical output attenuation of low power laser.
- Material Optical Grade Float Glass
- Transmitted Wavefront error λ/ 4 @ 633 nm
- Parallelism ＜30 arcsec
- Surface Quality 40-20
- Dimensional Tolerance ＋0.0/-0.1mm
- Thickness 2mm ±0.2mm
- Applied Wavelength Range 400~1100nm
- *Optical Density Tolerance ±5% @550nm
- CA ＞90%
- * Optical Density(OD) OD= -log(T/100) T
Design Wavelength
Material
Pro No.
Parameter
Dia
OD
Design Wavelength
Material
Delivery time
Compare
Price
Purchase
