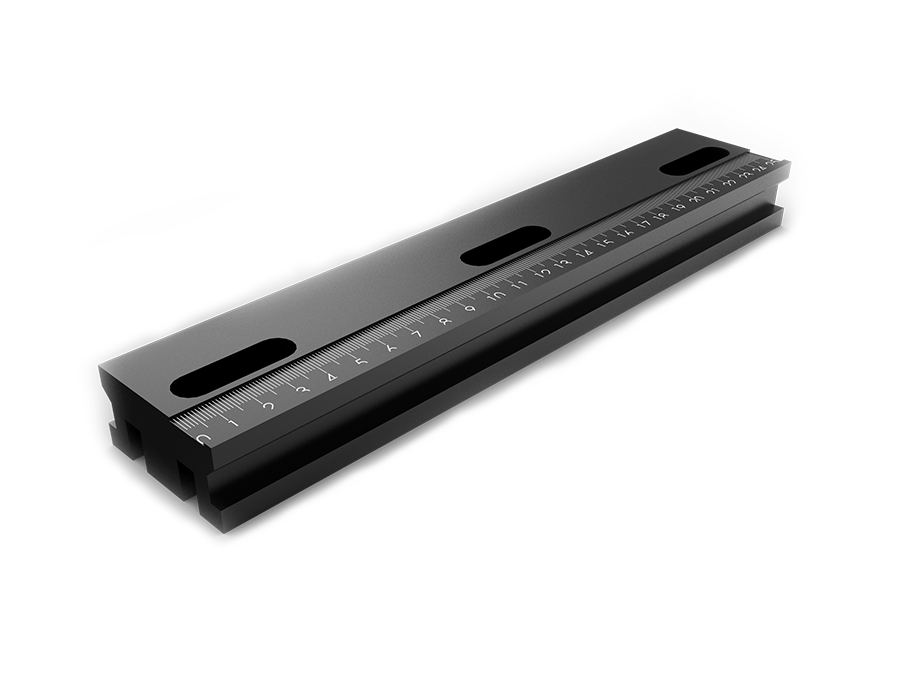

Optical Rails

Product characteristics
1. Engraved Scale for Precision Alignment of Optical Elements.
2. Easy to read engraved scales ( mm ).
3. Long grooves and flat appearance are suitable for multifunctional fixed applications.Integrated aluminum alloy structure makes it more durable.
4. Metric scale enables optical table fast moving and positioning.
5. Four Length are Available : 250mm、500mm、750mm、1000mm.
Optical Rails
Pro No.
Parameter
Rail Length
Rail Length
Rail Width
Rail Width
Weight
Weight
Delivery time
Compare
Price
Purchase
250mm
250mm
50.8mm
50.8mm
0.62kg
0.62kg
In stock
$76.00
500mm
500mm
50.8mm
50.8mm
1.24kg
1.24kg
In stock
$126.67
750mm
750mm
50.8mm
50.8mm
1.86kg
1.86kg
In stock
$191.67
1000mm
1000mm
50.8mm
50.8mm
2.48kg
2.48kg
In stock
$243.00
250mm
250mm
24mm
24mm
0.13kg
0.13kg
In stock
$50.83
500mm
500mm
24mm
24mm
0.26kg
0.26kg
In stock
$79.17
