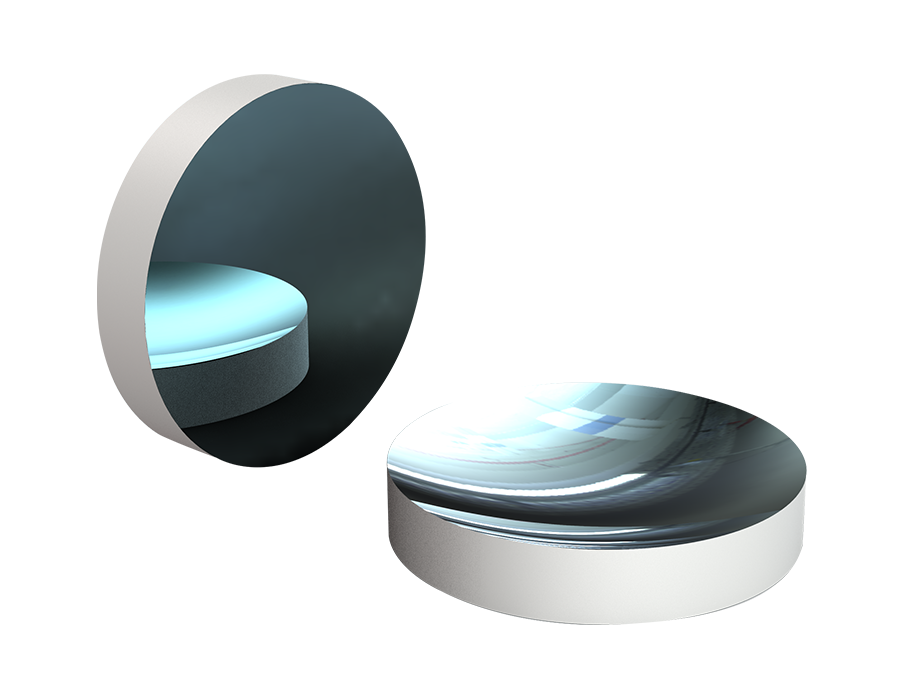

H-K9L Concave Spherical Mirror
Spherical mirrors have a positive focal length and can gather incident light. Suitable for beam focusing application. Image Optics offers the variety of uncoated and coated spherical mirrors.
- Material H-K9LOptical Glass
- Irregularity (P-V) λ/4 @ 633 nm
- Centering Tolerance ＜3 arcmin
- Surface Quality 40-20
- Back Surface Grinding or Polish
- Dimension Tolerance +0.0/-0.1mm
- Thickness Tolerance ±0.2mm
- Focal Length Tolerance ±2%
- Bevel Protective Bevel 0.2mmX45°
- Coating As product list
FL
Coating
Pro No.
Parameter
Dia
FL
Coating
CT
Delivery time
Compare
Price
Purchase
