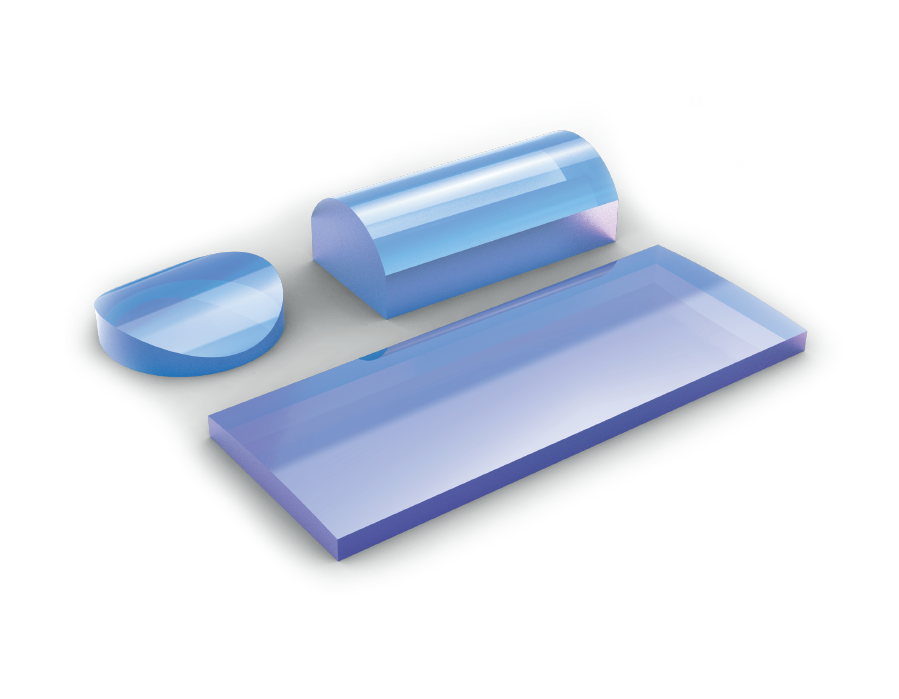

UV Fused Silica PCX Cylinder Lenses
Cylinder lenses are used to focus the light to a line or change the ratio of the width and height for the image. The focal length of the plano convex cylinder lens is positive ,which is made of one flat surface and one convex cylindrical surface. The focal length of the plano concave cylinder lens is negative, which is made of one flat surface and one concave cylindrical surface. Cylinder lenses are ideal for applications in laser processing systems, R&D and other fields. Grand Unified Optics offers uncoated and coated cylinder lenses suitable for your application.
- Material UV Fused Silica
- Design Wavelength 587.6nm
- Dimensional Tolerance +/-0.2mm
- Center Thickness Tolerance ±0.2mm
- Focal Length Tolerance（EFL） ±2%
- Centering Tolerance 3~5 arcmin
- Surface Quality 20-10
- Beve 0.2mmX45°
- Coating As product list
EFL
Coating
Material
Pro No.
Parameter
Dia/尺寸
EFL
Coating
Material
Delivery time
Compare
Price
Purchase
