IR Wedge plate Beamsplitters Φ12.7mm 50R/50T IR ZnSe
Price Option
Product No. 351503
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Dia Φ12.7mm
- R/T 50R/50T
- CoatingS1 ±10%avg @7~14μm
- CoatingS2 Ravg<2.5% @7-14μm
- Material Zinc Selenide (ZnSe)
- Surface Quality λ/4 @ 633 nm
- Surface Quality 40/20-60/40
- Wedge Angle 30arcmin ± 10arcmin
- Clear Aperture 90%
- Diameter Tolerance +0/-0.25mm
- Thickness Tolerance of Thick Edge ±0.25mm
- Thickness 3.0mm
- Bevel Protective Bevel 0.2~0.5mmX45°
-

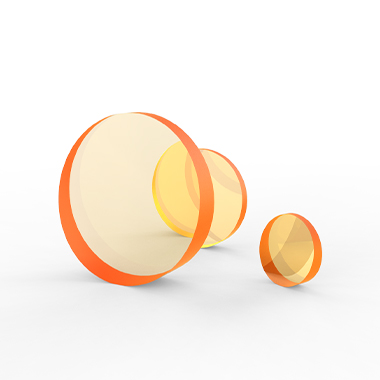

IR Wedge plate Beamsplitters Φ12.7mm 50R/50T IR Calcium Fluoride (CaF2) Single Crystal
-
IR Wedge plate Beamsplitters Φ25.4mm 50R/50T IR Calcium Fluoride (CaF2) Single Crystal
-
IR Wedge plate Beamsplitters Φ50.8mm 50R/50T IR Calcium Fluoride (CaF2) Single Crystal
-
IR Wedge plate Beamsplitters Φ25.4mm 50R/50T IR ZnSe
The wedge angle and back AR coating of the wedge plate beamsplitter will reduce the interference of ghost image from the back reflection. The high precision substrate will make sure the reflection and the transmission wavefront error. Image Optics provide various kinds of IR wedge plate Beamsplitter for your application.
