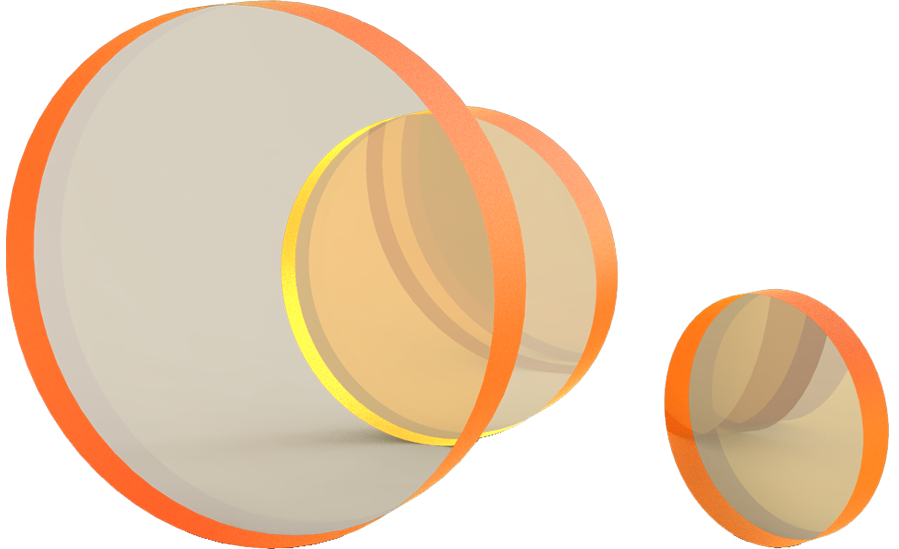

IR Wedge plate Beamsplitters
The wedge angle and back AR coating of the wedge plate beamsplitter will reduce the interference of ghost image from the back reflection. The high precision substrate will make sure the reflection and the transmission wavefront error. Image Optics provide various kinds of IR wedge plate Beamsplitter for your application.
- Material Calcium Fluoride (CaF2) Single Crystal
- Surface Accuracy λ/ 4 @ 633 nm
- Wedge Angle 30 ± 10 arcmin
- Surface Quality 40-20
- Clear Aperture 90%
- Diameter Tolerance +0/-0.25mm
- Thickness Tolerance of Thick Edge ±0.25mm
- Bevel Protective Bevel 0.2~0.5mmX45°
- S1 Beam Splitting Coating 45° AOI [ (R/T) ±10% ]avg@2~8μm
- S2 AR Coating Uncoated
R/T
CoatingS1
CoatingS2
Pro No.
Parameter
Dia
R/T
CoatingS1
CoatingS2
Delivery time
Compare
Price
Purchase
We offer two catalogs to you: product catalog and Imaging optics catalog.
Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.
Imaging optics catalog:
This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
