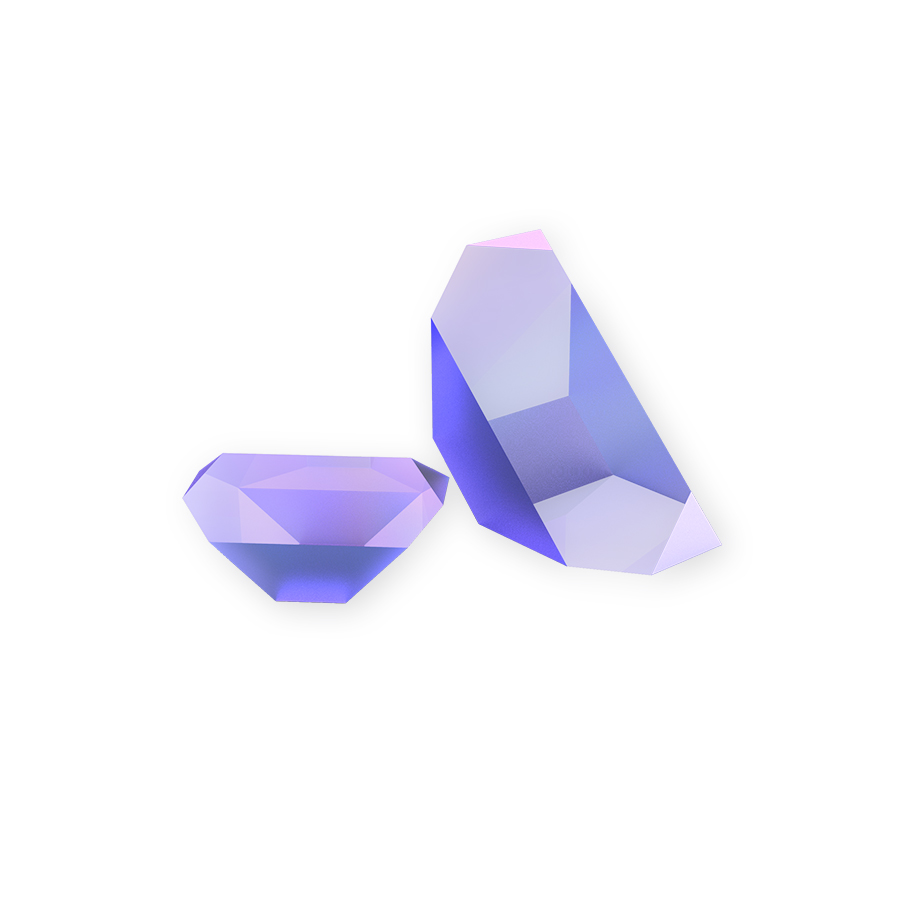

Roof Prisms A=13.70mm B=10.0mm C=10.0mm Uncoated H-K9L Optical Glass
Price Option
Product No. 369502
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Size A=13.7mmB=10.0mmC=10.0mm
- Clear Aperture Ф9mm
- Coating Uncoated
- Material H-K9L Optical Glass
- Surface Accuracy λ/10@632.8nm
- Angle Tolerance ±3 arcsec
- Other Angles Tolerance ±3 arcmin
- Surface Quality 40/20-60/40
- Dimensions Tolerance +0.0/-0.1mm
- Bevel <0.25mmX45°
Roof prisms can revert and invert the image or bend the deflected light by the angle of 90°.
It is ideal for telescope and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up and bend it through a 90° angle in order to maintain the correct visual orientation.
