Laser Plano Convex (PCX) Laser Lenses D=25.4mm F=75.0mm 355nm Corning 7980
Price Option
Product No. 400017
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download

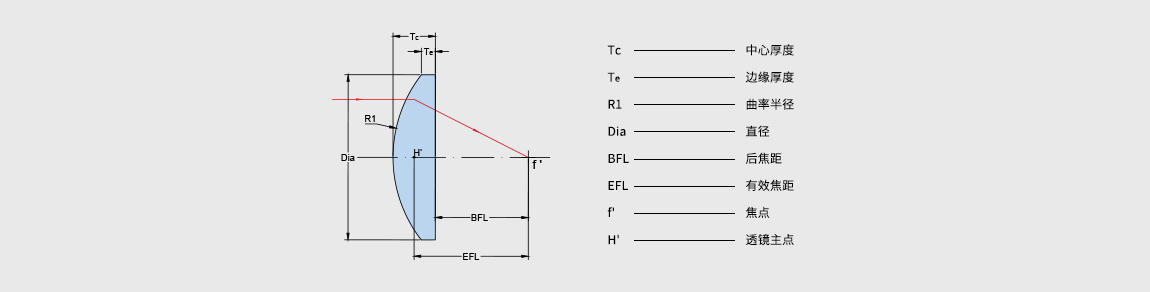

- Dia 25.4mm
- EFL 75.0mm
- Coating AR@355nm
- Reflectivity Ravg＜0.25%
- Angle of Incidence 0°
- BFL 71.30mm
- R 34.506mm
- Tc 5.408mm
- Material Corning 7980
- Irregularity(P-V) λ/8@633nm
- Damage Threshold 5J/cm²@355nm,20ns
- Clear Aperture ≥90%
- Surface Quality ＜20-10
- Center Deviation ＜3′
- Diameter Tolerance +0/-0.1mm
- Focal Length Tolerance ±1%
- Center Thickness Tolerance ±0.1mm
- Bevel Protective Bevel

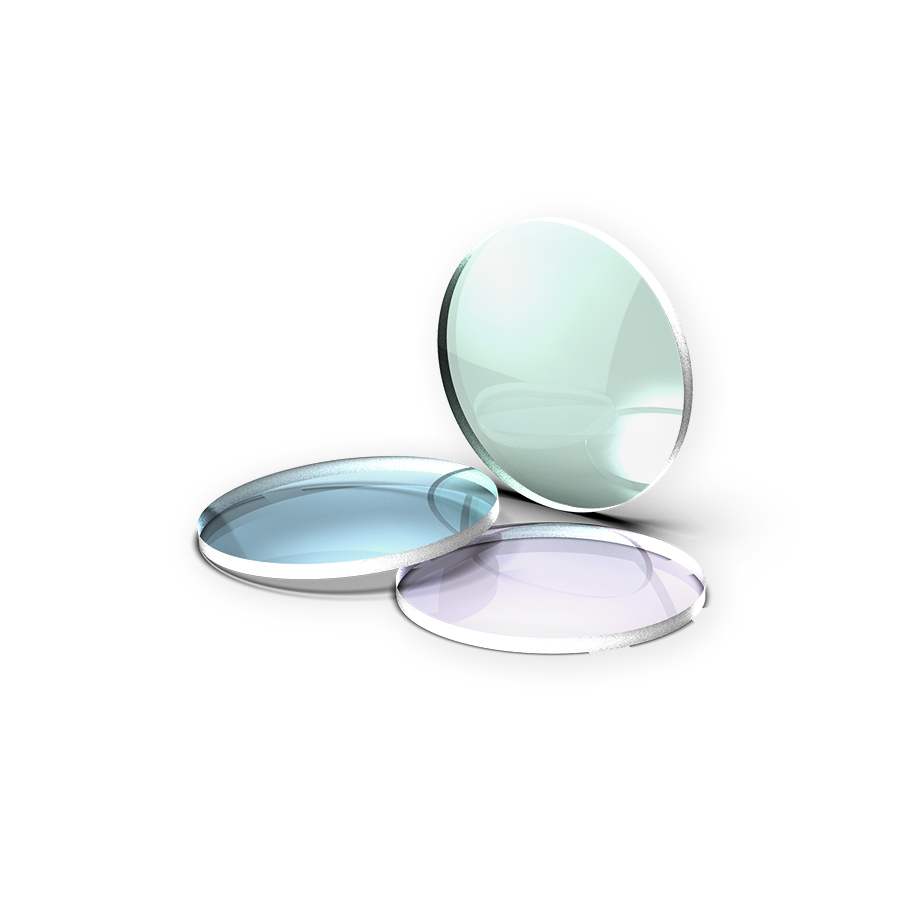

Image Optics offer laser plano-convex lenses specially designed for wavelengths 355 nm, 532 nm and 1064 nm. Manufactured from Corning 7980 substrate material and coated with high transmission AR coatings. Corning 7978 offers high transmittance and laser damage threshold up to 20J/cm². These high power laser plano-convex lenses have a wide range of applications in the fields of education, scientific research and laser processing. We can also customize high power laser plano-convex lenses to meet your needs.
